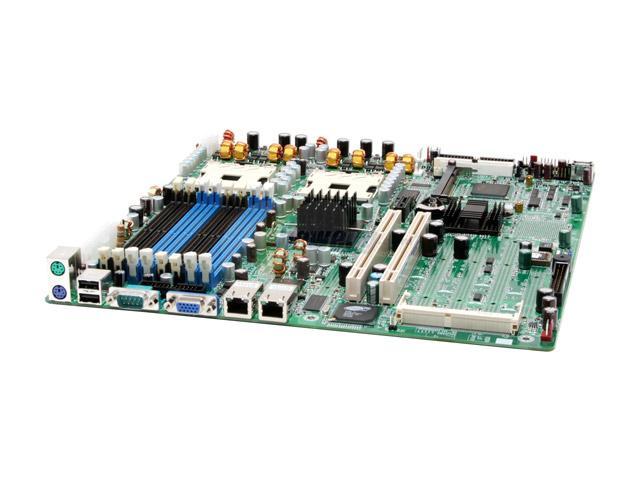

Tyan Thunder S5360G2NR-D-1UR IE7320 Dual Xeon SKT604 SATA(Raid) PCI-X VGA 2Gb LAN eATX Motherboard

Tyan Thunder S5360G2NR-D-1UR IE7320 Dual Xeon SKT604 SATA(Raid) PCI-X VGA 2Gb LAN eATX Motherboard

 +1,278 Reviews
$147.60
$147.60
SAVE Sold out

BUNDLE & SAVE


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Flexibility and performance represent the key capabilities of the Tyan Thunder i7520RD (S5360-D-1U). Based on Intel's E7520 server chipset, the Thunder i7520RD delivers cutting-edge features such as dual Intel Xeon support with EM64T and DUAL CORE technology, up to 16GB of DDR333 Registered ECC memory, multiple PCI-X 133 and 100MHz slots, PCI Express support, and dual PCI-X Gigabit Ethernet ports. Other incredible features include onboard Serial ATA with RAID, active system management functions, remote management option, and storage expansion options through Tyan's TARO SO-DIMM add-on modules.

S5360G2NR-D-1UR Specifications

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     E7320
  • Total Processor Supported:     2
  • Processor Socket:     Socket PGA-604
  • Processor Supported:     Xeon
  • Processor Supported:     Xeon Dual-Core
  • Front Side Bus:     800 MHz
  • 64-bit Processing:     Yes

    Memory

  • Number of Memory Slots:     8
  • Maximum Memory:     16 GB
  • Memory Standard:     DDR333/PC2700
  • Memory Standard:     DDR266/PC2100
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150
  • Controller Type:     Ultra ATA/100 (ATA-6)
  • RAID Supported:     Yes
  • RAID Levels:     0
  • RAID Levels:     1

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     RAGE XL
  • Graphics Controller Memory:     8 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     5
  • Number of PCI-X Slots:     4

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Form Factor:     Extended ATX
  • Width:     12.0"
  • Depth:     13.0"

    Miscellaneous

  • Additional Information:

    System Management:

  • ADI ADT7463 H/W Monitor IC
  • Six 3-pin system fan headers
  • Three 4-pin (3-pin compatible) fan connectors
  • Tachometer monitoring and PWM control
  • One 2-pin chassis intrusion header
  • Temperature and voltage monitoring
  • Watchdog timer; optional TYAN M3289 or M3290 SMDC (Server Management Daughter Card) IPMI 1.5 via 2x25 header

    • BIOS:

  • Phoenix BIOS 8 Mb flash ROM
  • Supports ACPI Power Management: S1, S4 & S5
  • Auto detection of memory size
  • Auto configuration of IDE hard disk types
  • User settings of hardware monitoring
  • Multiple boot options including PXE
  • Supports console re-direction
  • Green Compliant:     Yes
  • Green Compliance Certificate/Authority:     RoHS

    Warranty

  • Limited Warranty:     3 Year
