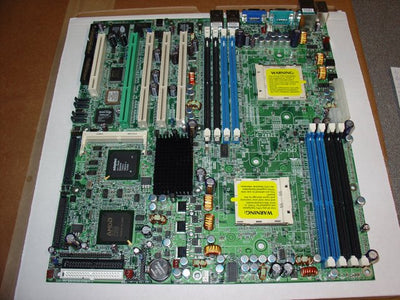

Tyan Thunder K8SD Pro 2882UG3NR-D AMD-8131 Dual S-940 SATA(Raid) VID LAN E-ATX BareMB
A classic dual processor server board reborn! Introducing the Thunder K8SD Pro (S2882-D), a multi-purpose server for a wide range of applications. Based on a dual AMD Opteron 200 series 32/64-bit architecture with single and DUAL CORE support, the Thunder K8SD Pro (S2882-D) is a powerful and stable server platform for today's demanding performance requirements. Thunder K8SD Pro (S2882-D) is specially designed to provide competitive features such as support for four PCI-X expansion cards, onboard Ultra320 SCSI functionality, 16GB of Registered DDR400/333 memory with quad-rank, remote management support, built-in video and integrated (2) Gigabit Ethernet and (1) 10/100 Ethernet LAN ports for powerful broadband connectivity. In short, the Thunder K8SD Pro (S2882-D) is the ideal choice for 1U and 2U server environments.
- Chipset Manufacturer: AMD
- Chipset Model: 8131
- Total Processor Supported: 2
- Processor Socket: Socket PGA-940
- Processor Supported: Opteron
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 32 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR400/PC3200
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Ultra320 SCSI
- Controller Type: Serial ATA
- Controller Type: Ultra ATA
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Video
- Fast Ethernet: Yes
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 5
- Number of PCI Slots: 1
- Number of PCI-X Slots: 4
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 4
- Number of SCSI Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 13.0"
- Depth: 12.0"
Physical Characteristics
-
Additional Information:
BIOS:
- AMI BIOS 8.0 on 4Mbit LPC Flash ROM
- Supports APM 1.2 & ACPI 1.0
- Power Management S1, S4, and S5 support
