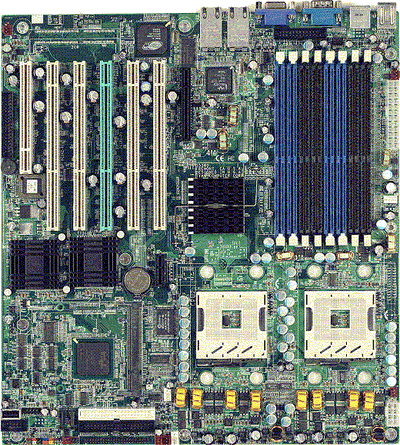

Tyan Thunder I7520D (S5360-D) S5360G2NR-D Dual Xeon SKT-604 SATA(Raid) Video LAN E-ATX Motherboard
Regular price
$139.60
Only 6 Left in Stock For This Price.
/
Flexibility and performance represent the key capabilities of the Tyan Thunder i7520D (S5360-D) and Thunder i7520RD (S5360-D-1U). Based on Intel's E7520 server chipset, both the Thunder i7520 and i7520R deliver cutting-edge features such as dual Intel Xeon support with EM64T and DUAL CORE technology, up to 16GB of DDR333 Registered ECC memory, multiple PCI-X 133 and 100MHz slots, PCI Express support, and dual PCI-X Gigabit Ethernet ports. Other incredible features include onboard Serial ATA with RAID, active system management functions, remote management option, and storage expansion options through Tyan's TARO SO-DIMM add-on modules.
S5360G2NR-D Specifications
- Chipset Manufacturer: Intel
- Chipset Model: E7320
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 800 MHz
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 16 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 5
- Number of PCI Slots: 2
- Number of PCI-X Slots: 2
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 13.0"
Physical Characteristics
-
Additional Information:
Chipsets:
- Intel E7320
- MCH North Bridge
- ICH5R South Bridge
- PXH I/O Bridge chip
- Winbond W83627HF Super I/O
- Phoenix BIOS 8 Mb flash ROM
- Supports ACPI Power Management: S1, S4 & S5
- Auto detection of memory size
- Auto configuration of IDE hard disk types
- User settings of hardware monitoring
- Multiple boot options including PXE
- Supports console re-direction
- ADI ADT7463 H/W Monitor IC
- Six 3-pin system fan headers
- Three 4-pin (3-pin compatible) fan connectors
- Tachometer monitoring and PWM control
- One 2-pin chassis intrusion header
- Temperature and voltage monitoring
- Watchdog timer
Miscellaneous
BIOS Features:
System Management:
- Limited Warranty: 3 Year
