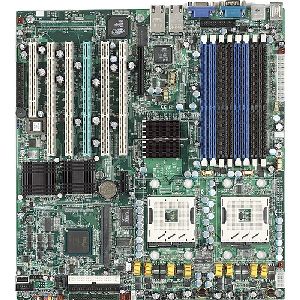

Tyan Thunder I7520 (S5360) S5360G2NR Dual Xeon SKT-604 Video 2Gb LAN E-ATX Motherboard: OEM Bare

Tyan Thunder I7520 (S5360) S5360G2NR Dual Xeon SKT-604 Video 2Gb LAN E-ATX Motherboard: OEM Bare

 +1,278 Reviews
$159.60
$159.60
SAVE Sold out

BUNDLE & SAVE


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Flexibility and performance represent the key capabilities of the Tyan Thunder i7520 (S5360). Based on Intel's next generation E7520 server chipset, the Thunder i7520 delivers cutting-edge features such as dual Intel Xeon "Nocona" support with EM64T (64-bit architecture), up to 16 GB of DDR333 Registered ECC memory, multiple PCI-X 133 and 100MHz slots, PCI Express support, and dual PCI-X Gigabit Ethernet ports. Other incredible features include onboard Serial ATA with RAID, active system management functions, remote management option, and storage expansion options through Tyan's TARO SO-DIMM add-on modules.

S5360G2NR Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     E7520
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket PGA-604
  • Processor Supported:     Xeon
  • Front Side Bus:     800 MHz

    Memory

  • Number of Memory Slots:     8
  • Maximum Memory:     16 GB
  • Memory Standard:     DDR266/PC2100
  • Memory Standard:     DDR333/PC2700
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Ultra ATA/100 (ATA-6)
  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     Rage-XL
  • Graphics Controller Memory:     8 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     6
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     4
  • Total Number of PCI Express Slots:     1
  • Number of PCI Express x8 Slots:     1

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     1
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     13.0"

    Miscellaneous

  • Package Contents:
  • 1 x S5360 Server Board
  • 1 x 80-pin Ultra-DMA-133/100/66/33 IDE Cable
  • 1 x Serial ATA Driver Diskette
  • 1 x Serial ATA Power Cable
  • 2 x Serial ATA Cables
  • 1 x User's Manual
  • 1 x Quick Reference
  • 1 x Driver CD
  • 1 x I/O Shield
  • Additional Information:

    Chipset:

  • Intel E7520 chipset, consisting of:
    • Northbridge: Memory Controller Hub (MCH)
    • Southbridge: I/O Controller Hub (ICH5R)
    • I/O Bridge: 6700PXH

    Operating System Support:

  • Microsoft Windows XP
  • Microsoft Windows 2000 Advanced Server
  • Microsoft Windows Server 2003
  • Microsoft Windows NT4.0
  • RedHat 8.0, 9.0
  • SuSE Server 8.0

    • Expansion Slots:

  • One proprietary 200-pin TARO SO-DIMM connector (on PCI-X bus)

    Warranty

  • Limited Warranty:     3 Year
