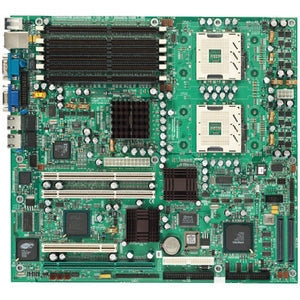

Tyan S2721GN533 Intel E7501 Socket-604 Intel Xeon DDR2 266MHZ Motherboard
Tyan S2721GN533 Intel E7501 Socket-604 Intel Xeon DDR2 266MHZ Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Utilizing the Intel E7501 chipset, and featuring five independent PCI buses, the Thunder i7501 Pro provides maximum performance for today's server applications. Supporting two Intel Xeon Processors with 533MHz Front Side Bus (FSB), and high-performance DDR RAM, the Thunder i7501 Pro incorporates two P64H2 hubs that support four independent PCI-X channels. The Thunder i7501 Pro also features three network ports, including dual Gigabit Ethernet ports. These features, combined with integrated ATI RAGE XL VGA graphics make this platform the perfect server solution.
- Chipset Manufacturer: Intel
- Chipset Model: E7501
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 400 MHz
- Front Side Bus: 533 MHz
Processor & Chipset
- Number of Memory Slots: 6
- Maximum Memory: 12 GB
- Memory Standard: DDR200/PC1600
- Memory Standard: DDR266/PC2100
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Ultra ATA/100 (ATA-6)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Video
- Fast Ethernet: Yes
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 1
- Number of PCI-X Slots: 3
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 1.1 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 13.0"
Physical Characteristics
-
Package Contents:
- 1x Thunder i7501 Pro (S2721-533) Server Board
- 1x 34-Pin floppy drive cable
- 1x Ultra-DMA-100/66/33 IDE cable
- 1x Thunder i7501 Pro User's Manual
- 1x TYAN driver CD
- 1x I/O shield with 3 LAN ports
-
Additional Information:
BIOS:
- AMI BIOS 8.0 on 4Mbit Flash ROM
- LAN remote boot (PXE) and SMBIOS v2.3
- BIOS Boot Specification v3.1 (BBS) support
- Auto configuration of IDE hard drive types
Miscellaneous
- Limited Warranty: 3 Year
Warranty
