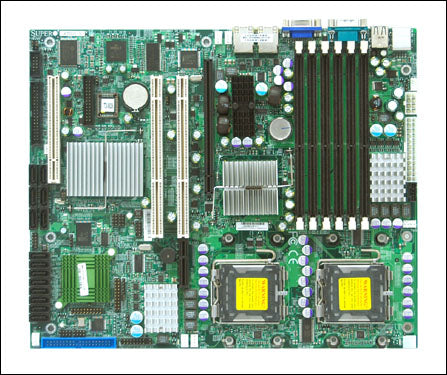

Supermicro X7DVL-3 / X7DVL-3-B LGA 771 Intel 5000V ATX Dual Intel Xeon Server Motherboard With SAS

Supermicro X7DVL-3 / X7DVL-3-B LGA 771 Intel 5000V ATX Dual Intel Xeon Server Motherboard With SAS

 +1,278 Reviews
$190.00
$190.00
SAVE Sold out

BUNDLE & SAVE


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

X7DVL-3 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

X7DVL-3 Specifications

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     5000V
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket J LGA-771
  • Processor Supported:     Xeon
  • Front Side Bus:     667 MHz
  • Front Side Bus:     1066 MHz
  • Front Side Bus:     1333 MHz

    Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     16 GB
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial Attached SCSI (SAS)
  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/100 (ATA-6)

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     XGI
  • Graphics Controller Model:     Volari Z7

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     2
  • Total Number of PCI Express Slots:     1
  • Number of PCI Express x8 Slots:     1

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     6
  • Number of SAS Interfaces:     2
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     10.0"
  • Depth:     12.0"

    Miscellaneous

  • Additional Information:

    ROHS Compliant

    Chipsets:

  • 5000V (Blackford VS)
  • MCH
  • ESB2

    • Hardware Monitoring:

  • Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +12V, 12V, +3.3V standby, +5V standby and VBAT)
  • Fan status monitor with firmware control
  • CPU/chassis temperature monitors
  • Low noise fan speed control
  • Platform Environment Control Interface (PECI) ready
  • CPU fan auto-off in sleep mode
  • Pulse Width Modulation (PWM) fan control
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • CPU slow-down on temperature overheat
  • CPU thermal trip support for processor protection
  • Power-up mode control for recovery from AC power loss
  • Chassis intrusion detection
  • System resource alert via Supero Doctor III
  • 6x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • 3-pin fan support
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • CPU thermal trip support
  • Thermal Control for 6x fan connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • Chassis intrusion header
  • SDDC Support

    • ACPI Features:

  • Slow blinking LED for suspend state indicator
  • Main switch override mechanism
  • ACPI Power Management
  • Power-on mode for power recovery

    • Support CD Contents:

  • BIOS flash upgrade utility
  • Device drivers
