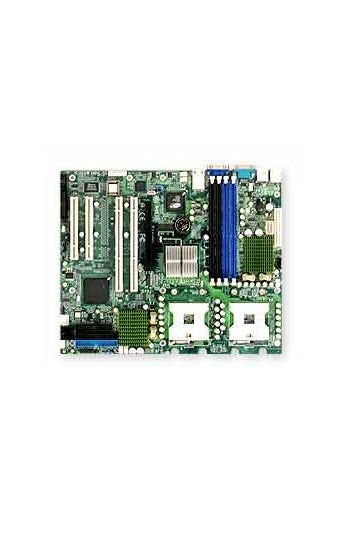

Supermicro X6DVL-EG E7320 Socket-604 DDR SDRAM 800Mhz ATX Motherboard

Specifications

Model Number:  X6DVL-EG

Brand:  Supermicro

Alt Part Number(s):  X6DVL-EG

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model:  X6DVL-EG

Chipset Type:  Intel E7320

Processor Socket:  Socket 604

Max RAM Size:  8 GB

Max Bus Speed:  800 MHz

RAM Technology:  DDR SDRAM

Bus Clock:  333 MHz, 266 MHz

Graphics Controller:  ATI RAGE XL

Dedicated Video Memory:  8 MB

Network Controller:  Intel 82541GI

Network Interfaces:  Gigabit Ethernet

Expansion Slots:  1 x PCIe x8 2 x PCI-X / 66 MHz (3.3 V) 2 x PCI (5 V) 2 x CPU 4 x DIMM 184-pin (2.5 V)

Storage Interfaces:  ATA-100 -connectors: 2 x 40pin IDC SATA-150 -connectors: 2 x 7pin Serial ATA

Interfaces:  1 x LAN (Gigabit Ethernet) 2 x USB 2.0 1 x PS/2 keyboard 1 x PS/2 mouse 1 x serial 1 x VGA

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  ATX

Width:  12 in

Depth:  10 in
