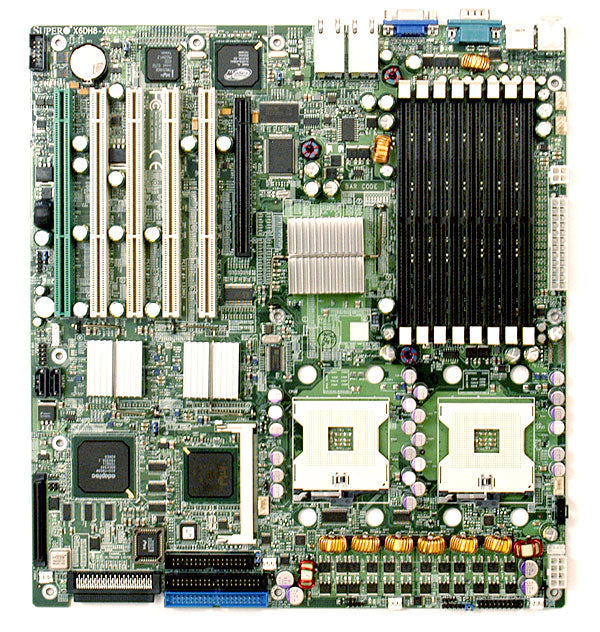

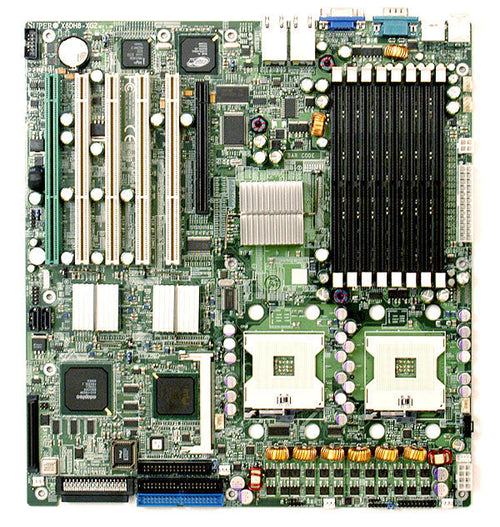

Supermicro X6DH8-XG2 Dual XEON Socket-604 E7520 Video LAN Extended-ATX Motherboard
Supermicro X6DH8-XG2 Dual XEON Socket-604 E7520 Video LAN Extended-ATX Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
| Specifications | |
| Model Number | X6DH8-XG2 |
| Condition | Refurbished Board Only (Accessory Not Included) |
| Brand | Supermicro |
| Alt Part Number(s) | X6DH8-XG2-B |
| Type | Motherboard |
| Long Description | |
| Supermicro X6DH8-XG2 supports single or dual Intel Nocona processors at 800 MHz front side bus. Based upon Intel's NetBurst microarchitecture, the Nocona processor supports the IA-32 software and includes features found in the Xeon processor such as Hyper Pipelined Technology, which includes a multi-stage pipeline, allowing the processor to operate at much higher core frequencies. Packaged in a 604-pin Flip Chip Micro Pin Grid Array (FC-mPGA4) platform in a Zero Insertion Force (ZIF) socket (mPGA 604), the Nocona Processor (800 MHz) which supports Hyper-Threading Technology and Intel EM64T, is ideal for high performance workstation and server environments with up to two processors on one system bus. | |
| Features | |
| Integrated Input/Output Ports: | |
| USB 2.0 x 5 | |
| Serial Port x 2 | |
| RJ45 Lan Port x 2 | |
| PS/2 Mouse x 1 | |
| PS/2 Keyboard x 1 | |
| Floppy Port x 1 | |
| Expansion Slots | |
| PCI Express x16 x 1 | |
| PCI Express x4 x 1 | |
| PCI-X 64 Bit (133/100/66 MHz) x 3 | |
| PCI-X 64 Bit (100/66 MHz) x 2 | |
| RAID Support | |
| RAID 0 | |
| RAID 1 | |
| RAID 10 | |
| JBOD Support | |
| SATA RAID 0 | |
| SATA RAID 1 | |
| Storage Controller Type(s) Serial ATA x 2, SCSI Ultra320 x 2, DMA/ATA-100 (Ultra) x 2 | |
| South Bridge Chip Intel ICH5R | |
| Processor Socket Type Socket 604 | |
| Max supported CPUs qty 2 | |
| Memory Type DDR2 SDRAM, Number of Memory Slots 8 x 240 Pin DIMMs, Supported RAM speeds 400 MHz, Max Supported RAM 16 GB | |
| Audio / Video: Video Out Ports 15 Pin D-Sub VGA port x 1, Video Interface PCI, On Board Graphic Processor ATI Rage XL | |
| Installed Video Memory 8 MB | |
|
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number. |
|
