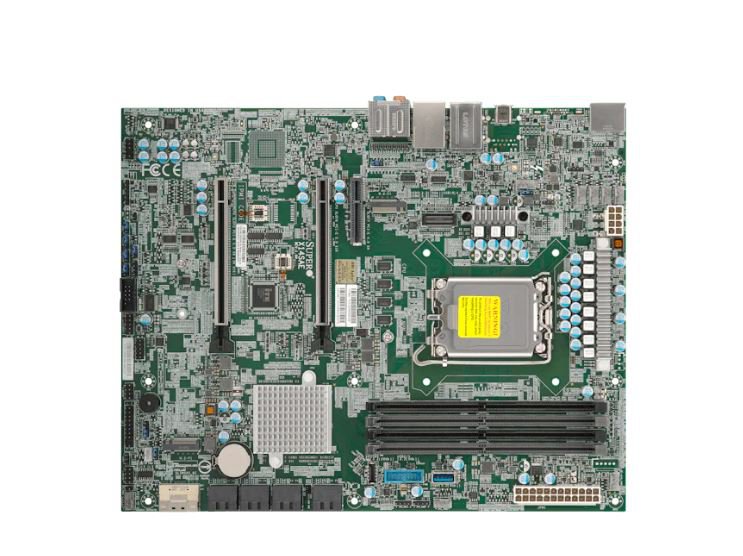

Supermicro X14SAE MBD-X14SAE-B W880 ATX Core Ultra 9/7/5 Motherboard
Supermicro X14SAE MBD-X14SAE-B W880 ATX Core Ultra 9/7/5 Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Overview
The Supermicro X14SAE MBD-X14SAE-B W880 motherboard supports Intel Core Ultra 9/7/5 series processors on the LGA1851 socket, with DDR5-5600MHz memory (up to 128GB) and PCIe 5.0 for fast data transfer and future-proof expansion.
Specifications
Model Number: X14SAE MBD-X14SAE-B
Brand: Supermicro
Alt Part Number(s): X14SAE MBD-X14SAE-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: X14SAE MBD-X14SAE-B
Form Factor: ATX
Dimension: 12" x 9.6" (30.5cm x 24.4cm)
CPU: Single Socket V1 (LGA-1851); Intel Core Ultra 9/7/5 Processors
Core Count: Up to 24C
Memory: 4 DIMM Slots; UDIMM sizes: 8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Error Detection: Corrects single-bit errors; Detects double-bit errors (ECC memory)
Chipset: Intel W880
SATA: 8 SATA (6Gbps)
Network Controller: Single LAN with Intel I226LM Ethernet; Single LAN with Intel PHY I219LM LAN controller (for AMT/vPro)
USB: 2 USB 3.2 Gen1 (Header); 3 USB 3.2 Gen2 Type-A (Rear); 1 USB 3.2 Gen2x2 Type-C (Rear); 1 USB 3.2 Gen2x2 (Header); 1 USB 4 Type-C (Rear)
Video: 1 Intel Thunderbolt 4 Type-C (Shared w/ USB4/DP2.1); 1 Display Port; 1 HDMI 2.1 (8K@60Hz)
Serial: 1 COM port (Header)
Audio: ALC 888S HD Audio
TPM: TPM 2.0 onboard
PCIe Configuration: 1 PCIe 4.0 x4 slot; 2 PCIe 5.0 x16 slots; 1 PCIe 4.0 x8 SlimSAS slot
M.2: 1 M.2 PCIe 4.0 x4 (M-key 2280/22110); 1 M.2 PCIe 5.0 x4 (M-key 2280)
BIOS: AMI 32MB UEFI; ACPI 6.5; UEFI 2.9; SMBIOS 3.8+
Software: Supermicro Server Manager (SSM); SuperDoctor 5 (SD5); Super Diagnostics Offline (SDO); SAA (limited support)
Voltage Monitoring: +1.8V CPU, +12V, +3.3V, +5V, 1.05 (PCH), 3.3V standby; CPU, Memory, PCH, System temperatures; Triple Cooling Zones; UID; VBAT
Fans: 7x 4-pin fan headers (up to 7 fans); 5 fans with tachometer; Fan speed control; Overheat LED
Other Features: 8-pin 12V DC power connector; ACPI power management; ATX power connector; Chassis intrusion header; Power-on recovery control; CPU thermal trip support; RoHS compliant; Voltage and frequency overclocking; Wake on LAN (WOL)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
