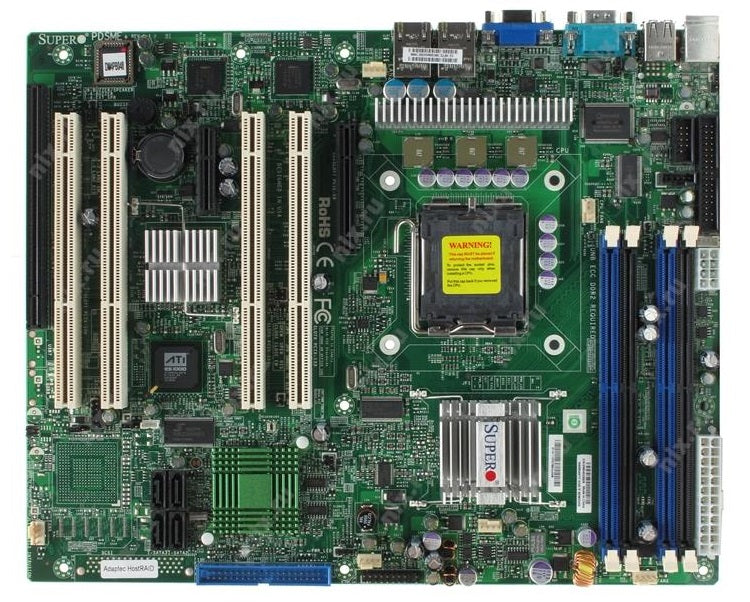

Supermicro PDSME+ Intel Xeon 3010 LGA-775 8BGb DDR2 ATX Server Motherboard
Supermicro PDSME+ Intel Xeon 3010 LGA-775 8BGb DDR2 ATX Server Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Overview
The PDSME supports single Intel Pentium D, Pentium 4 Extreme Edition, Pentium 4, Celeron D LGA775 Processors at system bus speeds of 1066 MHz, 800 MHz and 533 MHz. The PDSME supports the Intel Hyper-Threading (HT) Technology, the EM64T Technology, the Enhanced Intel SpeedStep Technology(EIST) and the Matrix Storage Technology. With additional high-speed PCI-X 133/100 expansion slots, this entry-level server delivers excellent cost-effective expandability and performance to handle small business computing workloads. Standard features also include gigabit connectivity and 3Gps SATA storage.
Specifications
Model Number: PDSME+
Brand: Supermicro
Alt Part Number(s): PDSME+ REV.1.1
Product Type: Server Motherboard
Note: New Motherboard Only (Accessory Not Included)
Technical Description
Brand: Supermicro
Model: PDSME+ / PDSME+ REV.1.1
CPU Socket Type: LGA 775
CPU Type: Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Celeron D / Pentium Extreme Edition / Pentium D / Xeon Dual-Core / Xeon Quad-core
FSB: 800 MHz / 1066 MHz / 533 MHz
Supported CPU Technologies: Enhanced SpeedStep Technology
Onboard Video Chipset: ES1000
Number of Memory Slots: 4
Maximum Memory Supported: 8GB
Total Processor Supported: 1
Number of IDE Interfaces: 1
Total Number of Onboard USB Ports: 1
Graphics Controller Memory: 16 MB
Total Number of PCI Express Slots: 2
Chipset Model: Intel 3010
Number of SATA Interfaces: 4
Number of PCI-X Slots: 4
Number of Total Expansion Slots: 7
Memory Technology: DDR2 SDRAM
Controller Type: Floppy Controller, Serial ATA/300, Ultra ATA/100 (ATA-6)
64-bit Processing: Yes
RAID Supported: Yes
Network (RJ-45): Yes
Max LAN Speed: Yes
PS/2 Ports: 3
Form Factor: ATX
Width: 12.0"
Depth: 9.6"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
