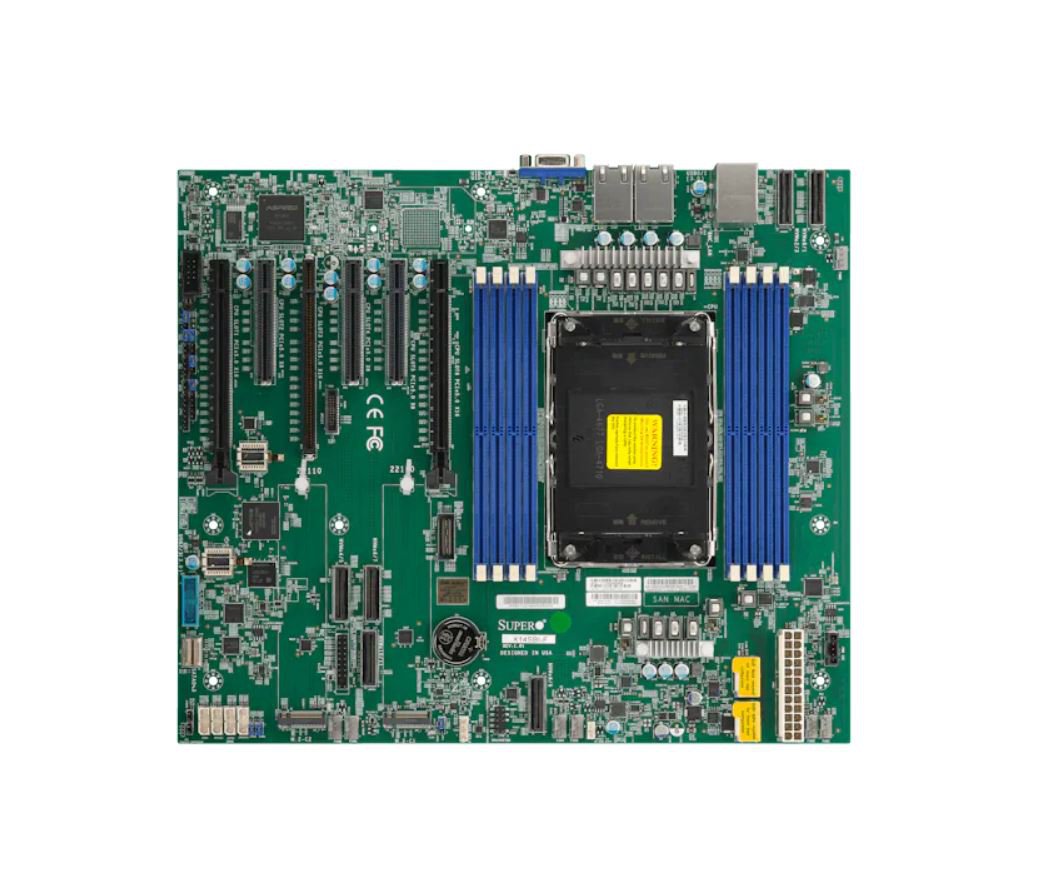

Supermicro MBD-X14SBI-F-O ATX-Compatible Xeon 6700/6500 Server Motherboard
Supermicro MBD-X14SBI-F-O ATX-Compatible Xeon 6700/6500 Server Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Overview
The Supermicro MBD-X14SBI-F-O motherboard supports Intel Xeon 6700/6500 series processors with P-cores on a single LGA-4710 socket, up to 350W TDP. It features PCIe 5.0 x16 for high-performance expansion and scalability in demanding server environments.
Specifications
Model Number: MBD-X14SBI-F-O
Brand: Supermicro
Alt Part Number(s): MBD-X14SBI-F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: MBD-X14SBI-F-O
Form Factor: ATX-Compatible (Extended Dimensions)
Dimension: 12.3" x 10.5" (31.24cm x 26.67cm)
CPU: Single Socket E2 (LGA-4710); Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count: Up to 144C
Memory: 8 DIMM Slots; Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
Error Detection: Corrects single-bit errors; Detects double-bit errors (ECC memory)
SATA: 4 SATA (6Gbps) via ASMedia ASM1164; via SlimSAS
Network Controller: Dual LAN with 1GbE Intel I210
LAN: 2 RJ45 1 GbE ports; 1 RJ45 1 GbE Dedicated IPMI LAN port
USB: 2 USB 3.2 Gen1 (Header); 2 USB 3.2 Gen1 (Rear)
Video: 1 VGA D-Sub Connector
PCIe Configuration: 3 PCIe 5.0 x8 slots; 3 PCIe 5.0 x16 slots; 6 PCIe 5.0 x8 via MCIO Connector
M.2: 2 M.2 PCIe 5.0 x2 slots (M-key 22110)
BIOS: AMI 64MB UEFI with ACPI 6.5, SMBIOS 3.7+, UEFI 2.9
Security: TPM 2.0
Voltage Monitoring: +12V, +3.3V, +5V, +5V standby; monitors CPU and memory voltages
LED Indicators: CPU/system overheat LED; UID/remote UID LED
Temperature Monitoring: CPU thermal trip support; chassis environment monitoring; PECI; Thermal monitor 2 (TM2)
Fan Headers: 7x 4-pin fan headers with speed control and overheat LED
Other: ACPI power management; chassis intrusion detection; power-on recovery; M.2 NGFF connector; UID; Wake on LAN (WOL)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
