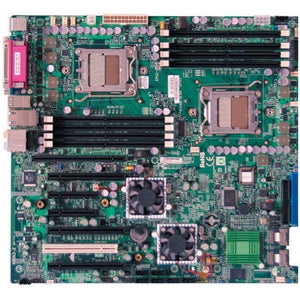

Supermicro H8DA3-2 / H8DA3-2-B NForCE Pro 3600 Dual Socket-F SATA(Raid) SAS(Raid) E-ATX Motherboard
Supermicro H8DA3-2 / H8DA3-2-B NForCE Pro 3600 Dual Socket-F SATA(Raid) SAS(Raid) E-ATX Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
H8DA3-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
- Chipset Manufacturer: NVIDIA
- Chipset Model: MCP55 Pro
- Total Processor Supported: 2
- Processor Technology: HyperTransport Technology
- Processor Socket: Socket F (1207)
- Processor Supported: Opteron
- HyperTransport Speed: 1000 MHz
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 32 GB
- Memory Standard: DDR2-400/PC2-3200
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Serial Attached SCSI (SAS)
- Controller Type: Ultra ATA/133 (ATA-7)
- Controller Type: Serial ATA/300
- Controller Type: Floppy Controller
I/O Controller
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC883
- Audio Channels: 7.1
Audio
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 6
- Number of PCI Slots: 1
- Total Number of PCI Express Slots: 5
- Number of PCI Express x4 Slots: 2
- Number of PCI Express x8 Slots: 1
- Number of PCI Express x16 Slots: 2
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Number of SAS Interfaces: 8
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 13.1"
Physical Characteristics
- Additional Information:
- ROHS Compliant
- Dual Channel memory supported
- LSI 1068E SAS Controller
Chipsets:
- Northbridge: nVidia MCP55 Pro
- Southbridge: nVidia IO-55
- 8Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
- SMBIOS 2.3
Hardware Monitoring:
- Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
- CPU 4-Phase-switching voltage regulator
- Total up to 8-fan status tachometer monitoring
- Up to eight 4-pin fan headers
- Status monitor for speed control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- PC temperature sensing logic
- CPU / System Overheat LED
- +5 Standby Alert LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Chipkill Support
- Onboard voltage monitors for two CPU cores, 3.3V, +5Vin, +12Vin, 5V standby and battery voltage
- Fan status monitor with firmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Pulse Width Modulated (PWM) fan connectors
- Auto-switching voltage regulator for the CPU core
- Microsoft OnNow
- LED for suspend state indication
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
- Suspend to RAM (STR)
Support CD Contents:
- BIOS flash upgrade utility
- MS Win XP Pro + SP2
- MS Win 2003 Ent
- MS Win Vista
- MS Win XP Pro x64
- MS Win 2003 Ent x64
- MS Win Vista x64
- RedHat Linux EL 3.0 (Update-7)
- RedHat Linux EL 3.0 (Update-8)
- RedHat Linux EL 4.0 (Update-3)
- RedHat Linux EL 4.0 (Update-4)
- RedHat Linux EL 3.0 (Update-7) x64
- RedHat Linux EL 3.0 (Update-8) x64
- RedHat Linux EL 4.0 (Update 3) x64
- RedHat Linux EL 4.0 (Update 4) x64
Miscellaneous
BIOS Features:
ACPI Features:
Supported Operating Systems:
