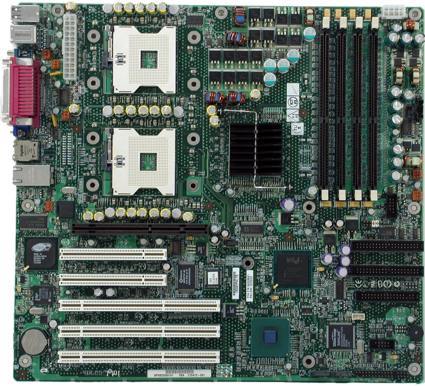

Intel SE7505VB2 Chipset-Xeon E7505 Dual Socket-603 8Gb DDR-333MHz Extended-ATX Server Motherboard
Intel SE7505VB2 Chipset-Xeon E7505 Dual Socket-603 8Gb DDR-333MHz Extended-ATX Server Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Overview
Deliver the performance, quality, and reliability that are vital for both server and workstation applications using the Intel Server Board SE7505VB2. With dual Intel Xeon processors supporting up to 2 MB L3 cache, a 533MHz system bus, and the Intel E7505 chipset, the powerful and versatile Server Board SE7505VB2 enables you to create a broad range of systems that deliver high-end processing to solutions ranging from entry-level to enterprise-critical. The Intel Server Board SE7505VB2 extends the bandwidth and performance-enhancing features of Intel NetBurst microarchitecture and Intel Hyper-Threading Technology in a package ideally suited to the unpredictable computing demands of growing businesses. In addition, dual integrated Intel PRO Network Connections, three independent PCI buses, integrated Serial ATA and support for 1.5V AGP 8X Pro50 cards provides the scalable networking, flexible storage options, and powerful graphics capabilities needed to meet a vast assortment of business challenges.
Technical Description
Chipset Model: E7505
Total Processor Supported: 2
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket PGA-604
Processor Supported: Xeon
Front Side Bus: 400 MHz
Front Side Bus: 533 MHz
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Standard: DDR333/PC2700
Memory Standard: DDR266/PC2100
Memory Technology: DDR SDRAM
Controller Type: Floppy Controller
Controller Type: Serial ATA/150
Controller Type: Ultra ATA/100 (ATA-6)
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8 MB
Fast Ethernet: Yes
Gigabit Ethernet: Yes
Number of PCI Slots: 3
Number of PCI-X Slots: 2
Number of AGP Slots: 1
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 3
Parallel Port: Yes
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 2
Number of SATA Interfaces: 2
Total Number of Onboard USB Ports: 1
Onboard LEDs Header: Yes
Power Supply Supported: EPS12V
Width: 12.0"
Depth: 13.0"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
