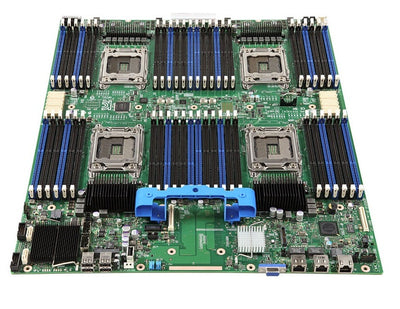

Intel S4600LTM Socket-R 1500Gb DDR3-1600MHz Custom Server Board

Specifications

Model Number:  S4600LTM

Brand:  Intel

Series:  S4600LH

Product Type:  Server Board

Technical Description

Brand:  Intel

Model:  S4600LTM

Board Form Factor:  Custom 16.7” x 20”

Chassis Form Factor:  2U Rack

Socket:  Socket R

Integrated BMC with IPMI:  IPMI 2.0

Rack-Friendly Board:  Yes

Embedded Options Available:  Yes

TDP:  130 W

Board Chipset:  Intel® C602 Chipset (Intel® BD82C602 PCH)

Max Memory Size:  (dependent on memory type) 1500 GB

Memory Types:  DDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866

No of Memory Channels:  16

Max Memory Bandwidth:  204.8 GB/s

Physical Address Extensions:  46-bit

No of DIMMs:  48

ECC Memory Supported:  Yes

Integrated Graphics:  Yes

Graphics Output:  D-sub

Discrete Graphics:  Supported

PCI Express Revision:  3.0

Max No of PCI Express Lanes:  128

PCIe x16 Gen 3:  2

USB Revision:  2.0

No of USB Ports:  6

Total # of SATA Ports:  10

RAID Configuration:  Up to SW Raid 5 (LSI + RSTE)

No of Serial Ports:  1

No of LAN Ports:  2

Integrated LAN:  2x 1GbE

Firewire:  No

Embedded USB:  (eUSB) Solid State Drive Option Yes

Integrated SAS Ports:  8

Integrated InfiniBand*:  No

Max CPU Configuration:  4
