Intel S2600WPQ Chipset-Xeon C600-A Socket-R LGA-2011 500Gb DDR3-1600MHz Extended-ATX Server Motherboard
Intel S2600WPQ Chipset-Xeon C600-A Socket-R LGA-2011 500Gb DDR3-1600MHz Extended-ATX Server Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Overview

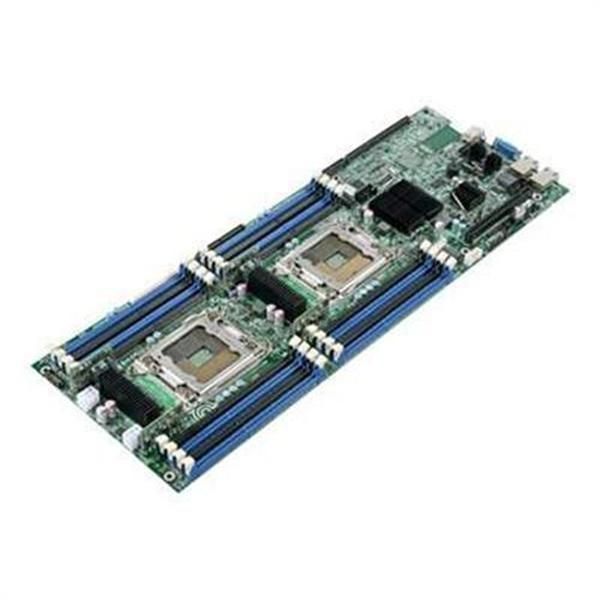

The Intel Server Board S2600WPQ supports 16 total DIMMs (two DIMM per channel design) for maximum memory and I/O capability and is the ideal option for high performance computing and datacenter deployment. Utilizing the power of the dual Intel Xeon® processor E5-2600 product family, the Intel Server Board S2600WPQ includes up to four PCI Express 3.0 x 16 slots, integrated QDR/FDR InfiniBand, and optional Intel I/O Expansion Modules or remote management module upgrades. This board is available in a 2U/4 node system with 2.5" or 3.5" hot-swap drive options. The S2600WPQ family makes use of several key new Intel Server Board Technology Innovations. The Intel Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management. Intel Quiet Thermal Technology enhancements, including Advanced Thermal Sensor Array and Therma Trip Shutdown, provide thermal and accoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel Efficient Power Technology to help improve power efficiency and reliability.
Specifications
Mfr Part Number: S2600WPQ
Brand: Intel
Model Number: S2600WPQ
Type: Server Motherboard
Technical Description
Brand: Intel
Model: S2600WPQ
Chipset: Intel C600-A
Total Processor Supported: 2
Processor Technology: Trusted Execution Technology
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Number of Memory Slots: 16
Memory Form Factor: DIMM, RDIMM, UDIMM, LRDIMM
Maximum Memory: 500 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
Controller Type: Serial ATA/300, Serial ATA/600, Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller: Intel ServerEngines Pilot III
Graphics Controller Memory: 128 MB
Graphics Memory Technology: DDR2 SDRAM
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 4
Number of PCI Express x16 Slots: 4
Serial Port: Yes
Audio Line In: No
Audio Line Out: No
Microphone Port: No
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 6
Number of SAS Interfaces: 4
Onboard LEDs Header: Yes
Form Factor: Extended ATX
Width: 18.9"
Depth: 6.8"
Green Compliant: Yes
Green Compliance Certificate/Authority: ENERGY STAR
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
