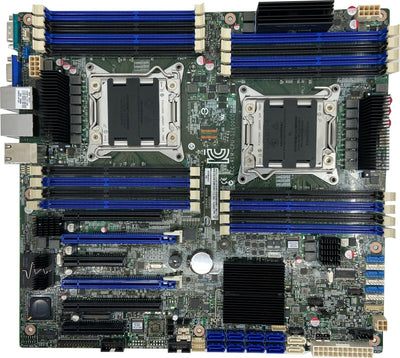

Intel S2600CO Xeon E5-2600Series LGA-2011 DDR3-1600MHz SSI EEB Server Motherboard

Specifications

Model Number:  S2600CO

Brand:  Intel

Alt Part Number(s):  G35870-206

Product Type:  Server Motherboard

Technical Description

Brand:  Intel

Model:  S2600CO / G35870-206

Product Name:  EATX Motherboard 2x Xeon E5-2600-DDR3 SATA Video 4 Geth

Product Type:  Server Motherboard

Certificate/Authority:  ENERGY STAR

64-bit Processing:  Yes

Chipset:  Intel C600-A

Number of Memory Slots:  16

Graphics Controller:  Matrox G200

Gigabit Ethernet:  Yes

Number of SATA Interfaces:  10

Number of SAS Interfaces:  8

Onboard Video:  On-board Video Chipset

RAID Supported:  Yes

Total Expansion Slots:  6

PCI Express x16 Slots:  4

Network (RJ-45) Ports:  4

Network (RJ-45):  Yes

Total Number of USB Ports:  4

Total Onboard USB Ports:  4

Onboard USB 2.0 Ports:  4

PCI Express Standard:  PCI Express 3.0, PCI Express 2.0

PCI Express Slots:  6

Memory Form Factor:  UDIMM, LRDIMM, RDIMM, DIMM

Processor Technology:  Trusted Execution Technology

Memory Technology:  DDR3 SDRAM

Processor Socket:  Socket R LGA-2011

Form Factor:  SSI EEB

Processor Supported:  Xeon

Total Processor Supported:  2

Controller Type:  Serial ATA/300, Serial ATA/600, Serial Attached SCSI (SAS)

Maximum Memory:  512 GB

Graphics Memory Technology:  DDR3 SDRAM

PCI Express x4 Slots:  1

PCI Express x8 Slots:  1

VGA Port:  Yes

Serial Port:  Yes

USB 2.0 Ports:  4

Onboard LEDs Header:  Yes

Onboard Serial Header:  Yes

Memory Standard:  DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400

Certifications & Standards:  KCC

RAID Levels:  0, 1, 5, 1+0

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
