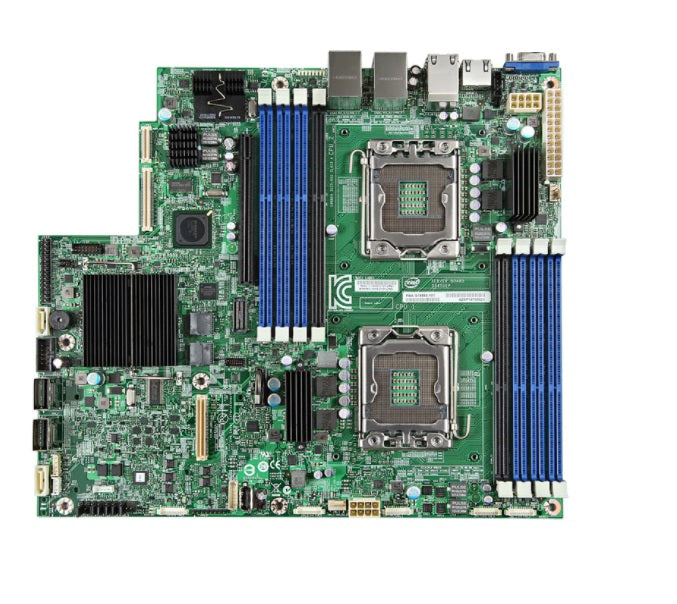

Intel DBS2400EP2 / S2400EP2 Chipset-Intel C600-A Socket-LGA1356 128Gb DDR3-800MHz SSI CEB Server Motherboard
Intel DBS2400EP2 / S2400EP2 Chipset-Intel C600-A Socket-LGA1356 128Gb DDR3-800MHz SSI CEB Server Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Overview
The Intel® Server Board S2400EP family supports dual Intel® Xeon® processors E5-2400 with 8 DIMMs, 6-channel native DDR-3 support, and a healthy storage capability with 10 onboard SATA and 2 mini-SAS. The Intel Server Board S2400EP family comes in an industry standard SSI CEB form factor, long-life roadmap support, and the availability of short chassis length barebone systems. The Intel Server Board S2400EP product family is designed for high-density rack-optimized deployments, either in value data centers or in embedded applications.
Technical Description
Chipset Model: C602-A
Total Processor Supported: 2
Processor Technology: Virtualization Technology
Processor Technology: Trusted Execution Technology
Processor Socket: Socket B2 LGA-1356
Processor Supported: Xeon
64-bit Processing: Yes
Number of Memory Slots: 8
Memory Form Factor: DIMM
Memory Form Factor: UDIMM
Memory Form Factor: RDIMM
Memory Form Factor: LRDIMM
Maximum Memory: 128 GB
Memory Standard: DDR3-1600/PC3-12800
Memory Standard: DDR3-1333/PC3-10600
Memory Standard: DDR3-1066/PC3-8500
Memory Standard: DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
Controller Type: Serial ATA/600
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: 0
RAID Levels: 1
RAID Levels: 5
RAID Levels: 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: ServerEngines Pilot III
Graphics Controller Memory: 16 MB
Graphics Memory Technology: DDR3 SDRAM
Number of Total Expansion Slots: 1
Number of PCI Slots: No
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 0
Number of PCI Express x8 Slots: 0
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
Audio Line In: No
Audio Line Out: No
Microphone Port: No
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 10
Number of SAS Interfaces: 0
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Form Factor: SSI CEB
Width: 12.0"
Depth: 10.5"
