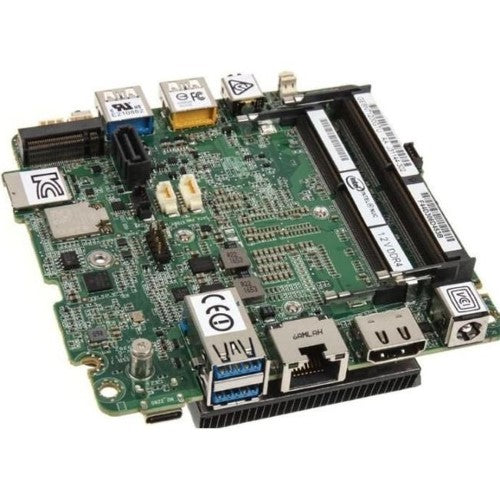

Intel BLKNUC7i5BNB Core i5 i5-7260U 3.4GHz DDR4 UCFF NUC Motherboard
Intel BLKNUC7i5BNB Core i5 i5-7260U 3.4GHz DDR4 UCFF NUC Motherboard
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Specifications
Model Number: BLKNUC7i5BNB
Brand: Intel
Alt Part Number(s): BLKNUC7i5BNB
Product Type: NUC Motherboard
Technical Description
Brand: Intel
Model: BLKNUC7i5BNB
Board Form Factor: UCFF (4" x 4")
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 SSD
Internal Drives Supported: 1
Lithography: 14 nm
TDP: 15 W
DC Input Voltage Supported: 12-19 VDC
Processor Included: Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
Embedded Options Available: No
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2133 1.2V SO-DIMM
Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s
Max DIMMs: 2
ECC Memory Supported: No
Integrated Graphics: Yes
Graphics Output: HDMI 2.0a; USB-C (DP1.2)
Displays Supported: 3
PCI Express Revision: Gen3
PCI Express Configurations: M.2 slot with PCIe x4 lanes
Removable Memory Card Slot: SDXC with UHS-I support
M.2 Card Slot (storage): 22x42/80
USB Ports: 6
USB Revision: 2.0, 3.0
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F + 0
Total SATA Ports: 2
Max SATA 6.0 Gb/s Ports: 2
Audio (back channel + front channel): 7.1 digital (HDMI mDP); L+R+mic (F)
Integrated LAN: 10/100/1000
Integrated Wireless: Intel® Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
Additional Headers: CEC, 2x USB2.0, FRONT_PANEL
Total Thunderbolt™ 3 Ports: 1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
