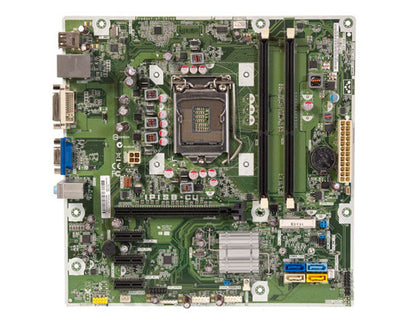

HP 656846-001 / IPISB-CU Carmel2 Intel-H61 LGA-1155 DDR3-1333MHz Ultra-ATX Motherboard

Specifications

Mfr Part Number:                 IPISB-CU

Condition:                           refurb

Brand:                                HP

Model Number:                    656846-001

Type:                                 Motherboard

Technical Description

Brand:                                HP

Model:                                656846-001

Manufacturer:                      Pegatron

HP/Compaq name:              Carmel2

Form Factor:                        uATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)

Chipset:                              Intel H61

Bus speed:                          Up to 5 GT/s

Socket type:                        LGA 1155

Memory Type:                      Single channel, Two 240-pin DDR3 DIMM, PC3 8500 (1066 MHz), PC3 10600 (1333 MHz)

Graphics cards:                     PCI Express x16

Audio:                                 Realtek ALC656GR CODEC

LAN:                                    RTL8171EH-CG gigabit ethernet controller

Expansion Slots:                   1x PCI Express x16 (Gen2.0), 3x PCI Express x1 (Gen2.0), 1x PCI Express Mini Card x1

Internal Conectors

1x ATX power connector

1x ATX CPU power connector

1x CPU fan connector

1x System fan connector

4x SATA 2.0 connectors

1x Internal SPDIF output connector

1x Front panel audio connector

1x ROM recovery connector

1x Hood sense connector

1x One touch reset connector

1x One touch recovery connector

1x Front panel connector

4x 2.0 USB connectors
