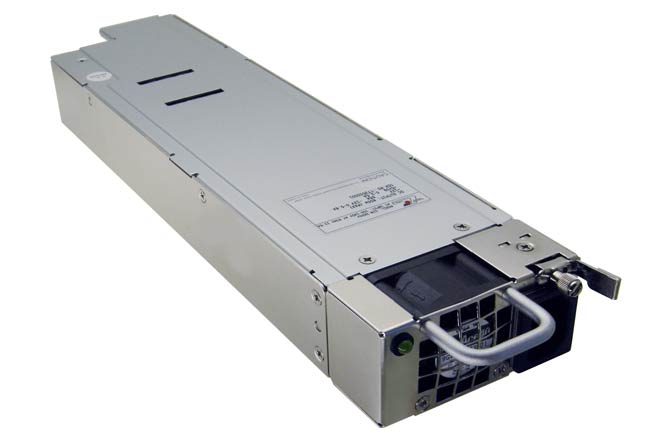

Emacs GIN-3800V 800Watts 47-63Hz 90-264Volts AC RoHS Power Supply Unit

Emacs GIN-3800V 800Watts 47-63Hz 90-264Volts AC RoHS Power Supply Unit

 +1,278 Reviews
Regular price $63.60
Regular price $63.60 Sale price
SAVE Sold out

BUNDLE & SAVE


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Specifications

Model Number:  GIN-3800V

Brand:  Emacs

Condition:  New

Alt. Part Number(s):  GIN-3800V

Type:  Power Supply Unit



Technical Description

Brand:  Emacs

Model:  GIN-3800V

Dimensions:  305.00x79.00x40.00 (mm), 12.01x3.11x1.57 (inch).

Frequency:  47~63hz

Input current:  6a (rms) for 230vac, 12a (rms) for 115vac

Inrush current:  60a max. For 115 vac per module, 80a max. For 230 vac per module

Output Voltage +12V:  Output Current Min 2. Output Current Max 65. Regulation Load ±5%, Regulation Line ±1%, Output Ripple & Noise Max 120mV.

Output Voltage +12V:  Output Current Min 2. Output Current Max 65. Regulation Load ±5%, Regulation Line ±1%, Output Ripple & Noise Max 120mV.

Output Voltage -12V:  Output Current Min 0. Output Current Max 0.8. Regulation Load ±10%, Regulation Line ±1%, Output Ripple & Noise Max 120mV.

Output Voltage -12V:  Output Current Min 0. Output Current Max 0.8. Regulation Load ±10%, Regulation Line ±1%, Output Ripple & Noise Max 120mV.

Voltage:  90~264vac full range



Features

Dielectric withstand: input/output 1500 vac for 1 minute input to frame ground 1500 vac for 1 minute

Efficiency: typical >80% at 115v, 20%~100% max load

Hold up time: when power shutdown dc output 12v must be maintain 16msec in regulation limit at normal input voltage.

Over power protection:110~160% max

Over voltage protection: +12v-13.3v~14.3v

Power good signal: on delay 100ms to 500ms, off delay 1ms

Safety: to meet ul, tuv, cb

Short circuit protection: +12v, -12v, auto-recovered: +5vsb

Temperature range: operating 0C~40C, storage -20C~80C



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
