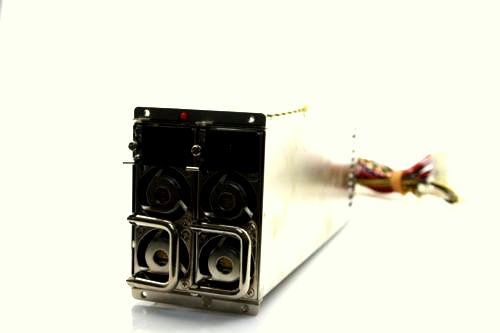

Zippy Emacs M2W-6500P 500-Watt 2U Redundant Power Supply
Zippy Emacs M2W-6500P 500-Watt 2U Redundant Power Supply
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Specifications
Ac Inlet In Each Module
Dielectric Withstand: Input / Output 1500 Vac For 1 Minute
Dimensions (DxWxH): 11.81"/300mm x 3.98"/101mm x 3.23"/82mm
Efficiency: 65% Typical, At Full Load
Faulty Alarm Methods: Led, Buzzer, Ttl Signal
Form Factor: 2 Rack Units Redundant (2U Redundant)
Hold Up Time: 1.6 Ms Minimum At Full Load & 90vac Input Voltage
Hot-Swappable/Hot Pluggable Redundancy Function
Humidity: Operating: 20%-95%, Non-Operating: 10%-95%
Input To Frame Ground 1500 Vac For 1 Minute
Input: PFC
Isolation: Built-In The Power Module
Meet Iec-1000-3-2 Class D ( Active Pfc)
Over Load Protection: 110~160% Max
Over Voltage Protection: +5v - 5.7v ~ 6.5v, +3.3v -3.9v~4.3v,+12v - 13.3v ~ 14.3v Over Current Protection Emi Noise Filter: Fcc Class B, Cispr22 Class B
Power Good Signal: On Delay 100 Ms To 500 Ms, Off Delay 1 Ms
Remarks: 85% Is Normal Condition And 95% Is With Special Coating Process
Remote On / Off Control
Remote Sensing Design
Safety: Ul, Cul, Tüv, Ccc, Gost, Bsmi
Temperature Range: Operating 0C ~ 40C, Storage -20C ~ 70C
Wattage: 500W
