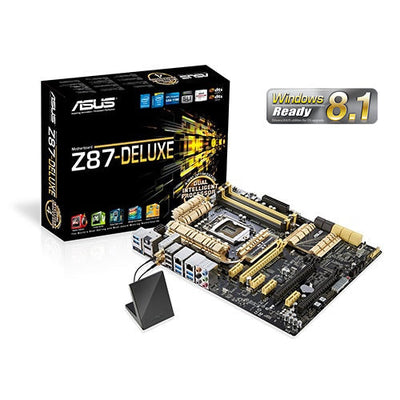

Asus Z87-DELUXE Intel Z87 LGA1150 32Gb 24-Pin ATX Motherboard
Regular price
$139.60
Only 6 Left in Stock For This Price.
/
| Specifications | |
| Model Number | Z87-DELUXE |
| Brand | Asus |
| Condition | New |
| Alt Part Number(s) | Z87-DELUXE |
| Type | Motherboard |
| Technical Description | |
| Brand | Asus |
| Model | Z87-DELUXE |
| Socket Type | LGA 1150 |
| CPU Type | 4th-generation Core i3,i5,i7,Pentium,Celeron(LGA1150) |
| CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z87 |
| Number of Memory Slots | 4×240pin |
| Max Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2(x16 or dual x8) |
| PCI Express 2.0 x16 | 1(running at x4) |
| PCI Express x1 | 4 |
| SATA 6Gb/s | 6 x SATA 6Gb/s by Intel Z87, 4 x SATA 6Gb/s by ASMedia ASM1061 |
| SATA RAID | 6 x SATA 6Gb/s by Intel Z87 Support Raid 0, 1, 5, 10 |
| Video Chipset | Supported only by CPU with integrated graphic |
| Audio Chipset | Realtek ALC1150 |
| Audio Channels | 8 Channels |
| LAN Chipset | Intel I217-V, Realtek 8111GR |
| Max LAN Speed | Dual 10/100/1000Mbps |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth v4.0, Bluetooth v3.0 + HS |
| Ports HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort, 1 x Mini DisplayPort |
| USB 3.0 | 6 x USB 3.0, USB 1.1/2.0, 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Form Factor | ATX |
| Dimensions | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Internal I/O Connectors | Onboard USB, 2 x USB 3.0 + 4 x USB 2.0 |
| Other Connectors | 1 x TPM header |
| 1 x CPU Fan connector(s) (1 x 4 -pin) | |
| 1 x CPU OPT Fan connector(s) (1 x 4 -pin) | |
| 4 x Chassis Fan connector(s) (4 x 4 -pin) | |
| 1 x S/PDIF out header(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) (Q-Connector) | |
| 1 x DirectKey Button(s) | |
| 1 x DRCT header(s) | |
| 1 x MemOK! button(s) | |
| 1 x TPU switch(es) | |
| 1 x EPU switch(es) | |
| 1 x Power-on button(s) | |
| 1 x Reset button(s) | |
| 1 x Clear CMOS button(s) | |
| Features | |
| ASUS Exclusive Features | |
| ASUS Dual Intelligent Processors 4 with 4-Way Optimization | |
| - 4-Way Optimization tuning key perfectly consolidates ASUS exclusive DIGI+ Power Control, TPU, EPU and Fan Xpert 2, quickly optimize the digital power setting, system performance, power saving and whole system cooling configuration with just a click. | |
| CPU Power | |
| - Industry leading digital 16-phase power design | |
| - ASUS CPU power utility | |
| DRAM Power | |
| - Industry leading digital 2-phase DRAM power design | |
| - ASUS DRAM power utility | |
| ASUS EPU | |
| - EPU, EPU switch | |
| ASUS TPU | |
| - Auto Tuning, TurboV, GPU Boost, TPU switch | |
| ASUS Fan Xpert 2 featuring Fan Auto Tuning function for optimized speed control | |
| ASUS Wi-Fi GO! | |
| - Wi-Fi GO! Function: Cloud GO!, DLNA Media Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard and Mouse, File Transfer, Capture and Send | |
| - Wi-Fi GO! and NFC Remote for portable Smartphone/Tablet, supporting iOS and Android systems | |
| - Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode | |
| ASUS Exclusive Features | |
| - Network iControl featuring instant network bandwidth domination for top network program in use | |
| - USB 3.0 Boost featuring speedy USB 3.0 transmission | |
| - USB Charger+ featuring quick-charging function for all smart devices | |
| - Ai Charger+ | |
| - Disk Unlocker | |
| - AI Suite 3 | |
| - Anti Surge | |
| - MemOK! | |
| ASUS Quiet Thermal Solution | |
| - ASUS Fan Xpert 2 featuring Fan Auto Tuning function for optimized speed control | |
| - ASUS Fanless Design: Heat-pipe solution | |
| ASUS EZ DIY | |
| - ASUS USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling | |
| - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | |
| - ASUS O.C. Tuner | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 2 | |
| ASUS Q-Design | |
| - ASUS Q-code (4 digits display) | |
| - ASUS Q-Shield | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
| - ASUS Q-Connector | |
|
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number. |
|
