Overview

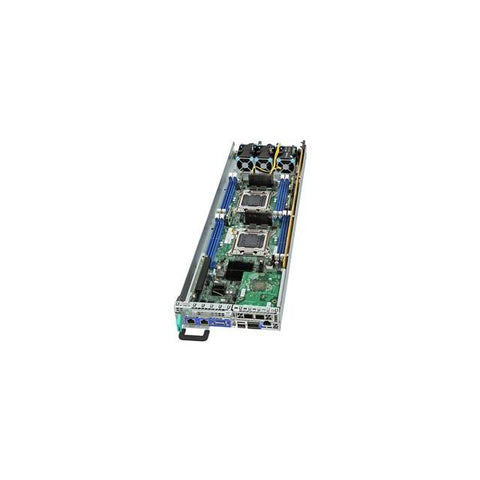

Specifically designed for the high performance computing (HPC) market, the Intel® Server Board S2600JF is a high density, half-width solution supporting a dual Intel® Xeon® processor E5-2600 product, QDR/ FDR InfiniBand, and eight memory DIMMS at 1600MHz, balancing optimal memory bandwidth and computing power to maximize price performance The Intel® Server Board S2600JF makes use of several key new Intel® Server Board Technology Innovations. The Intel® Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management. Intel® Quiet Thermal Technology enhancements, including Advanced Thermal Sensor Array and Thermal Trip Shutdown, provide thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel® Efficient Power Technology to help improve power efficiency and reliability. The Intel® Server Board S2600JF is available in 2U/4 node systems with 2.5” or 3.5” hot-swap drive options. Intel® I/O Expansion Module and Intel® Remote Management Module (Intel® RMM) upgrades are available separately. This board is ideal for high performance computing (HPC) environments where advanced computations rely on maximum application performance for powerful results
Specifications
Model Number: S2600JF
Brand: Intel
Condition: New OEM Board Only (Accessory Not Included)
Alt. Part Number(s): S2600JF
Product Type: Server Motherboard
Technical Description
Brand: Intel
Model: S2600JF
processors supported: 2
Processor socket: Socket R (LGA 2011)
Processor number of cores supported: 2, 4, 6, 8
Number of QPI links: 2
Intel Xeon series: E5-2600
Thermal power: 135W
CPU configuration (max): 2
Supported memory types: DDR3-SDRAM
Supported memory clock speeds: 1333, 1600 MHz
Number of DIMM slots: 8
Maximum internal memory: 250 GB, ECC
Memory channels: Octa
Supported RDIMM clock speeds: 1600 MHz
Maximum RDIMM memory: 250 GB
Maximum UDIMM memory: 250 GB
Supported UDIMM clock speeds: 1333 MHz
Ethernet interface type: Fast, Gigabit
Number of SATA connectors: 6
Integrated SAS ports: 4
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 5
Serial ports quantity: 1
Hard drive interface: Serial ATA
RAID levels: 0, 1, 5
PCI Express x8 slots: 1
PCI Express x16 slots: 3
PCI Express slots version: 3.0
PCI Express slots quantity: 48
Features
On-site support
Component for: Server
Chassis type: Rack
On-board graphics adapter
Discrete graphics support
Intel Anti-Theft Technology
Intel Fast Memory Access
Intel Flex Memory Access
Intel I/O Acceleration Technology
Intel AES New Instructions
Intel Intelligent Power Node Manager
Intel Trusted Execution Technology
Intel Quiet System Technology (QST)
Intel Remote Management Module Support
Intel Matrix Storage Technology
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version
Physical Address Extension (PAE)
Integrated systems available
Rack-Friendly board
Integrated BMC with IPMI
Memory bandwidth (max)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
