Motherboards

Specifications

Mfr Part Number:  TX97-XE

Brand:  Asus

Alt Part Number:   TX97-XE

Type:   Motherboard

Technical Description

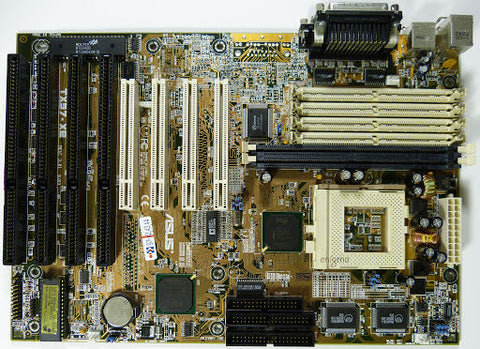

Asus TX97-XE Intel 430TX Chipset 4 PCI 233Mhz Motherboard

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

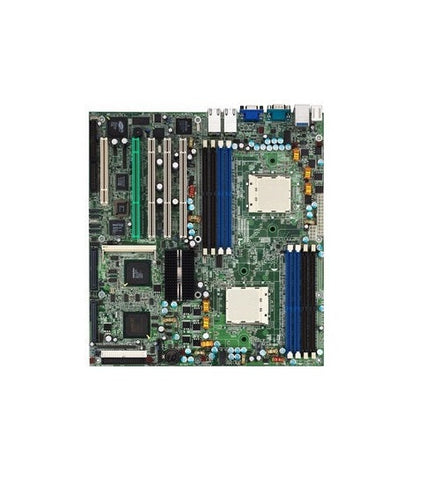

Model Number:  S2882-D

Brand:  Tyan

Alt Part Number(s):  S2882-D

Product Type:  Motherboard

Technical Description

Tyan S2882-D Thunder K8SD Pro Dual 940 Motherboard.

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

PDSM4 Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

No accessories included

Specifications

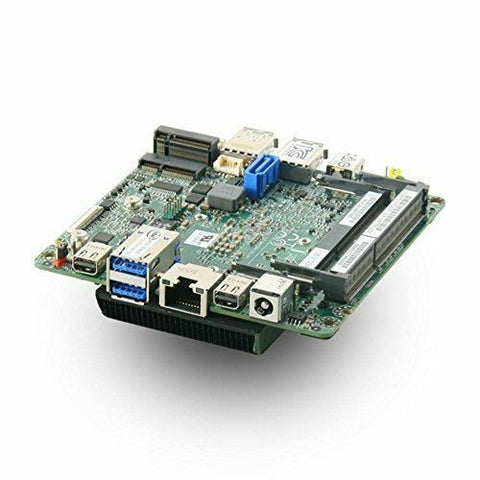

Model Number:  BLKNUC5I3MYBE

Brand:  Intel

Model:  BLKNUC5I3MYBE

Product Type:  NUC Motherboard

Technical Description

Brand:  Intel

Model:  BLKNUC5I3MYBE

Board Form Factor:  UCFF (4" x 4")

Socket:  Soldered-down BGA

Internal Drive Form Factor:  M.2 and 2.5" Drive

Total Internal Drives Supported:  2

Embedded Options Available:  Yes

TDP:  15 W

DC Input Voltage Supported:  12-19 VDC

Processor Included:  Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)

Max Memory Size (dependent on memory type):  16 GB

Memory Types:  DDR3L-1333/1600 1.35V SO-DIMM, Dual-Channel, 25.6 GB/s, Non-ECC

Integrated Graphics:  Yes

Graphics Output:  2x mDP, 1x eDP

Total Displays Supported:  3

PCI Express Revision:  Gen 2

PCI Express Configurations:  M.2 slot with PCIe X2 lanes + HS Custom Solutions Header with PCIe x4 lanes

USB Revision:  USB 3.0, USB 2.0

USB Ports:  6

USB 2.0 Configuration (External + Internal):  0 + 2

USB 3.0 Configuration (External + Internal):  4 + 0

Total SATA Ports:  1

Total SATA 6.0 Gb/s Ports:  1

RAID Configuration:  2.5" SSD + M.2 SATA SSD (RAID-0 RAID-1)

Serial Port via Internal Header:  Yes

Audio (back channel + front channel):  Front panel headset jack

Integrated LAN:  10/100/1000Mbps

Note:  NUC Motherboard Only (Accessories Not Included)

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

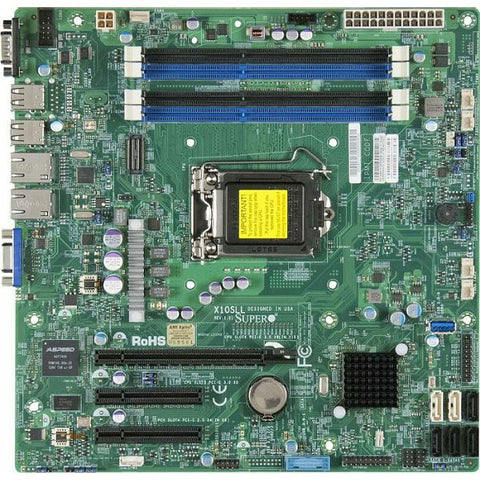

Model Number:  X10SLL-F-B

Brand:  Supermicro

Alt Part Number(s):  X10SLL-F-B

Product Type:  Server Motherboard

Note:  New Board With Backplate Only.

Technical Description

Brand:  Supermicro

Model:  X10SLL-F-B

CPU Socket Type:  LGA 1150

CPU Type:  Intel Xeon processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron

Chipsets:  Intel C222

Number of DDR3 Slots:  4 x 240pin

DDR3 Standard:  DDR3 1600

Maximum Memory Supported:  32GB

ECC Supported:  Yes

PCI Express x8:  1x PCI-E 3.0 x8 (in x16) slot, 1x PCI-E 3.0 x8 slot

PCI Express x4:  1x PCI-E 2.0 x4 (in x8) slot

SATA:  4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s

SATA RAID:  SATA3 (6Gbps) w/ RAID 0, 1 / SATA2 (3Gbps) w/ RAID 0, 1, 5, 10

Onboard Video Chipset:  Aspeed AST2400

LAN Chipset:  Intel I217-LM

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Intel I210-AT

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

Video Ports:  D-Sub

Form Factor:  MicroATX

Dimensions (W x L):  9.6" x 9.6"

Features

Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors

Intel® C222 Express PCH

Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets

Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT)

2x SATA (6Gbps), 4x SATA (3Gbps)

1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots

2x USB 3.0 (1 Type-A + 1 via header) 6x USB 2.0 (4 rear + 2 via header)

Integrated IPMI 2.0 with KVM and Dedicated LAN

SATA DOM power connector support

VGA D-sub connector, TPM header

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

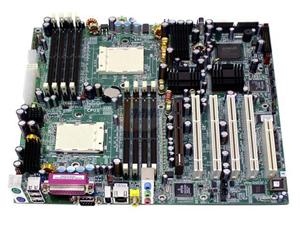

The Thunder K8W (S2885) Server Board delivers the best performance for powering digital content creation, productivity, 3D gaming, and other multimedia applications. Powered by the AMD Opteron processor with the scalability of 32-bit and 64-bit support, this platform supports AGP 8X / AGP 8X PRO 110W slot, eight DIMM slots for 16GB of DDR400/333/266 memory with ECC, Gigabit Ethernet, integrated Serial ATA, FireWire, and six-channel audio with SPDIF support. With this many onboard features, the Thunder K8W (S2885) Server Board offers the best in high-end workstation platforms technology.

Specifications

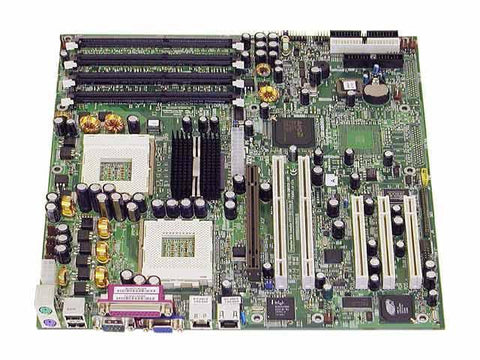

Mfr Part Number:  S2469GN

Brand:  Tyan Thunder

Model Number:  S2469GN

Type:  Motherboard

Note:  Without Accessories

Technical Description

Brand:  Tyan Thunder

Model:  S2469GN

Chipset:  AMD-760 MPX

Product Line:  Tyan Thunder K7X Pro

Socket:  Socket A

Memory:  4 MB

Bus Speed:  266 MHz

Interface:  ATA-100

Total Ports:  2 x 40pin IDC

Data Link Protocol:  Ethernet, Fast Ethernet, Gigabit Ethernet

Network:  Ethernet, Gigabit Ethernet

Compatible Processors:  Athlon MP

Output Voltage:  208 - 230 V AC

Form Factor:  extended ATX

Width:  12 in

Depth:  13 in

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

Model Number:  H8DAR-8

Brand:  Supermicro

Alt Part Number(s):  H8DAR-8

Type:  Motherboard

Technical Description

Brand:  Supermicro

Model:  H8DAR-8

Chipset Manufacturer:  AMD

Chipset Model:  8131

Processor Socket:  Socket PGA-940

Number of Memory Slots:  8

Maximum Memory:  32 GB

Memory Technology:  DDR SDRAM

Total Number of USB Ports:  2

Number of USB 2.0 Ports:  2

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  12.0"

Depth:  13.1"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Need a compact, power-efficient platform? The Tomcat K7M (S2498) Desktop Board offers all of this and more! Powered by the AMD Geode NX processor, and using the capabilities of the VIA KN400A chipset, the Tomcat K7M also implements a compact FlexATX form factor, a power-optimized design, Gigabit connection options, built-in audio, integrated graphics, and multiple hardware monitoring features. All of this provides customers with an incredible solution for embedded systems and applications.
