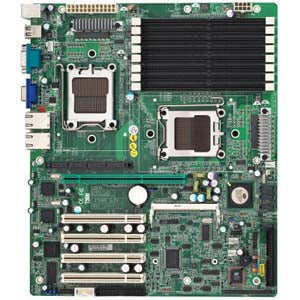

TYAN S3970G2N-U-RS ServerWORKS HT1000 Socket-1207(F) AMD Opteron DDR2 667MHZ Video LAN Motherboard

$79.60

Compact yet robust, the Tomcat h1000E (S3970-U) offers support for a single AMD Opteron 2000 series processor. The S3970-U also provides other great features like PCI-X and PCI expansion slot support, built-in video, SATA with RAID, IPMI 2.0 remote management option, TARO add-on storage card support, and up to (8) DIMMs of DDR2 Registered memory, all in an ATX form factor.

S3970G2N-U-RS Product Overview

Processor & Chipset

Chipset Manufacturer: Broadcom
Chipset Model: ServerWorks HT-1000/HT-2000
Total Processor Supported: 1
Processor Technology: HyperTransport Technology
Processor Socket: Socket F (1207)
Processor Supported: Opteron

Memory

Number of Memory Slots: 8
Maximum Memory: 16 GB
Memory Standard: DDR2-667/PC2-5300
Memory Standard: DDR2-533/PC2-4200
Memory Technology: DDR2 SDRAM

I/O Controller

Controller Type: Ultra ATA/100 (ATA-6)
Controller Type: Floppy Controller
Controller Type: Serial ATA/150

Video

Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Volari Z7 (XG20)
Graphics Controller Memory: 16 MB

Network & Communication

Gigabit Ethernet: Yes

I/O Expansions

Number of Total Expansion Slots: 6
Number of PCI Slots: 4
Number of PCI-X Slots: 1

Interfaces/Ports

Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes

Onboard Interfaces

Number of IDE Interfaces: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes

Physical Characteristics

Width: 12.0"
Depth: 10.2"

Miscellaneous

Package Contents:
Tomcat h1000E (S3970G2N-U) Server Board
1x 34-Pin floppy drive cable
4 x SATA cable
2 x SATA Drive Power Adapter
1 x Ultra-DMA-100/66 IDE cable
1 x USB2.0 cable
1 x COM Port cable
1 x User Manual
1 x Quick Reference Guide
1 x TYAN driver CD
1 x I/O shield
Additional Information:
ROHS Compliant

Chipsets:
Broadcom BCM-5785 (HT1000) core logic
SMSC SCH4307 Super I/O

BIOS Features:

AMI BIOS on 8Mbit LPC Flash ROM
Serial console redirect
USB boot supported
ACPI supported
PnP, DMI 2.0, WfM 2.0 Power Management

System Management:

(2) SMSC EMC6D103 hardware monitoring IC
(4) 3+1-pin (with smart FAN control) + (2) 3-pin fan headers support tachometer monitoring
Temperature & voltage monitoring
Watchdog timer support
Chassis intrusion detection

Warranty

Limited Warranty: 3 Year
