Motherboards

Specifications

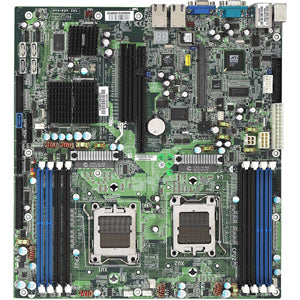

Model Number:  S2912WG2NR

Brand:  Tyan Thunder

Alt Part Number(s):  S2912WG2NR

Product Type:  Motherboard

Technical Description

Brand:  Tyan Thunder

Model:  S2912WG2NR

Series:  n3600R

Socket:  Socket F (1207)

Model:  NFP 3600

Chipset Manufacturer:  NVIDIA

Maximum Memory:  64 GB

Memory Technology:  DDR2 SDRAM

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  Extended ATX

Width:  13.0"

Depth:  12.0"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

Supermicro MBD-X13SAZ-F-B LGA-1700 128GB Intel R680E Micro ATX Motherboard

Specifications

Model Number:  MBD-X13SAZ-F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X13SAZ-F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X13SAZ-F-B

Processor Socket:  LGA-1700

Memory Technology:  DDR5

Memory Supported:  128GB

Chipset Type:  Intel R680E

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  Micro ATX

Boost your performance with the Supermicro MBD-X13SAZ-F-B LGA-1700 128GB Intel R680E Micro ATX Motherboard - ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

UP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro''s new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.

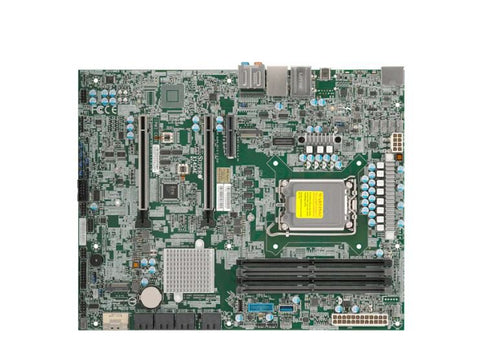

Supermicro MB MBD-X14SAE-B W880 Socket V1 LGA1851 Max128GB DDR5 ATX Bulk Pack Supermicro MB MBD-X14SAE-B W880 Socket V1 LGA1851 Max128GB DDR5 ATX Bulk Pack

Overview

The Supermicro X14SAE MBD-X14SAE-B W880 motherboard supports Intel Core Ultra 9/7/5 series processors on the LGA1851 socket, with DDR5-5600MHz memory (up to 128GB) and PCIe 5.0 for fast data transfer and future-proof expansion.

Specifications

Model Number:  X14SAE MBD-X14SAE-B

Brand:   Supermicro

Alt Part Number(s):    X14SAE MBD-X14SAE-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model:  X14SAE MBD-X14SAE-B

Form Factor: ATX

Dimension: 12" x 9.6" (30.5cm x 24.4cm)

CPU: Single Socket V1 (LGA-1851); Intel Core Ultra 9/7/5 Processors

Core Count: Up to 24C

Memory: 4 DIMM Slots; UDIMM sizes: 8GB, 16GB, 24GB, 32GB, 48GB, 64GB

Error Detection: Corrects single-bit errors; Detects double-bit errors (ECC memory)

Chipset: Intel W880

SATA: 8 SATA (6Gbps)

Network Controller: Single LAN with Intel I226LM Ethernet; Single LAN with Intel PHY I219LM LAN controller (for AMT/vPro)

USB: 2 USB 3.2 Gen1 (Header); 3 USB 3.2 Gen2 Type-A (Rear); 1 USB 3.2 Gen2x2 Type-C (Rear); 1 USB 3.2 Gen2x2 (Header); 1 USB 4 Type-C (Rear)

Video: 1 Intel Thunderbolt 4 Type-C (Shared w/ USB4/DP2.1); 1 Display Port; 1 HDMI 2.1 (8K@60Hz)

Serial: 1 COM port (Header)

Audio: ALC 888S HD Audio

TPM: TPM 2.0 onboard

PCIe Configuration: 1 PCIe 4.0 x4 slot; 2 PCIe 5.0 x16 slots; 1 PCIe 4.0 x8 SlimSAS slot

M.2: 1 M.2 PCIe 4.0 x4 (M-key 2280/22110); 1 M.2 PCIe 5.0 x4 (M-key 2280)

BIOS: AMI 32MB UEFI; ACPI 6.5; UEFI 2.9; SMBIOS 3.8+

Software: Supermicro Server Manager (SSM); SuperDoctor 5 (SD5); Super Diagnostics Offline (SDO); SAA (limited support)

Voltage Monitoring: +1.8V CPU, +12V, +3.3V, +5V, 1.05 (PCH), 3.3V standby; CPU, Memory, PCH, System temperatures; Triple Cooling Zones; UID; VBAT

Fans: 7x 4-pin fan headers (up to 7 fans); 5 fans with tachometer; Fan speed control; Overheat LED

Other Features: 8-pin 12V DC power connector; ACPI power management; ATX power connector; Chassis intrusion header; Power-on recovery control; CPU thermal trip support; RoHS compliant; Voltage and frequency overclocking; Wake on LAN (WOL)

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

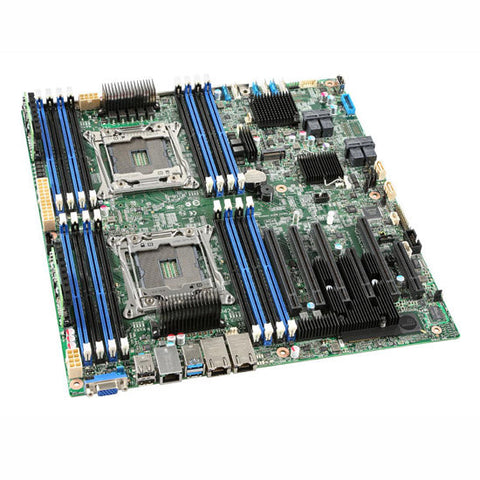

Model Number:  DBS2600CW2SR

Brand:  Intel

Alt Part Number(s):  DBS2600CW2SR

Product Type:  Server Motherboard

Technical Description

Brand:  Intel

Model:  DBS2600CW2SR

Socket:  Socket LGA 2011-v3

Processor Supported:  Xeon

Chipset Type:  Intel C612

Memory Technology:  DDR4 SDRAM

Maximum Memory:  1 TB

Total Number of USB Ports:  7

Frequency:  2.4 GHz

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  SSI EEB

Width:  13"

Depth:  12"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

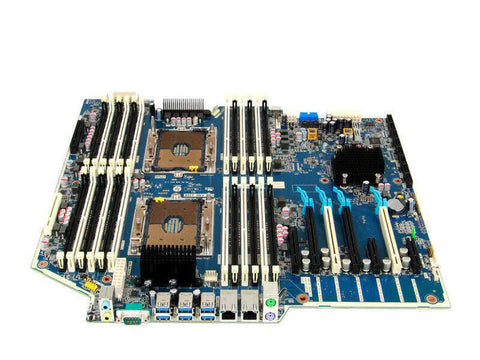

HP 914281-001 Intel Xeon 5218 3.9GHz Motherboard for Z8 G4 Workstation 844776-001

Specifications

Model Number:  914281-001

Brand:  HP

Alt Part Number(s):  844776-001

Product Type:  Motherboard

Technical Description

Brand:  HP

Model:  914281-001

Processor type:  Intel Xeon 5218

Processor Speed:  3.9GHz

Chipset Type:  Intel C622

Socket Type:  LGA 3647

Cache:  22MB

Memory Type:  DDR4 SDRAM

Number of Memory Slots:  24

Input/Output Ports:  Ethernet (RJ-45)

Expansion Slot:  2 PCIe x4; 3 PCIe x8; 4 PCIe x16

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

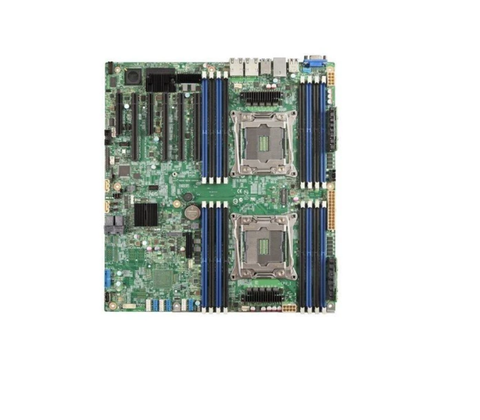

Model Number:  DBS2600CW2R

Brand: Intel

Alt Part Number(s):  DBS2600CW2R

Product Type:  Motherboard

Technical Description

Brand:  Intel

Model:  DBS2600CW2R

Compatible Processors:  Intel Xeon E5-2600 v3 family

Processor Sockets:  R3 (LGA2011-3)

Chipset:  C612

Memory Capacity:  1TB

Memory Type:  DDR4, LRDIMM, RDIMM, DIMM

Technology:  DDR4 SDRAM

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  SSI EEB

Width: 13"

Depth:  12"

Features

 Intel Node Manager

Intel Fast Memory Access

Intel Flex Memory Access

Intel I/O Acceleration Technology

Intel Server Customization Technology

Intel Rapid Storage Technology enterprise

Intel Advanced Management Technology

Intel Remote Management Module Support

Intel Virtualization Technology for Directed I/O

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

• Mfr Part Number: H8DAI+-F
• CPU: Dual 1207-pin Socket F Supports Dual Six-Core/Quad-Core AMD Opteron 2000 Series Processor
• Chipset: AMD chipset SR5690 & SP5100
• Memory: 16x 240pin DDR2-800/667/533 DIMMs, Dual Channel, ECC/REG, Max Capacity 128GB
• Slots: 4x PCI-Express 2.0 x16 Slots; 2x PCI-Express 2.0 x4 Slot; 1x PCI 32-bit 33MHz slot
• IDE/SATA: 1x ATA-133 Channel; 6x SATA2 Ports, Support RAID 0, 1, 10
• Video: Matrox G200eW Graphics Controller, w/ 16MB DDR2 memory
• Audio: ALC888 High Definition Audio CODEC
• LAN: Intel 82576 Dual-Port Gigabit Ethernet Controllers
• Ports: 10x USB 2.0 Ports (6 rear, 2 by type A, 2 by headers); 1x VGA; 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by headers); 2x RJ45 LAN Ports; Audio I/O Jacks
• Form Factor: Extended ATX, 13.68 x 13.05 inch / 34.8 x 33.2 cm
• Package: Retail
• RoHS Compliant

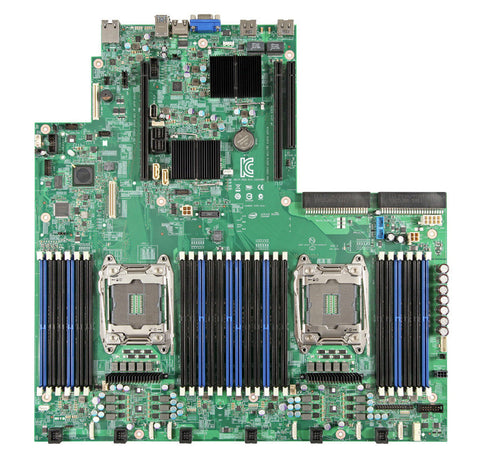

Specifications

Model Number:  S2600WTTR

Brand:  Intel

Alt Part Number(s):  BLKS2600WTTR

Product Type:  Motherboard

Technical Description

Brand:  Intel

Model:  S2600WTTR

Socket:  Socket R3. LGA2011-v3

Chipset:  Chipset C612

Product Name:  Server Board S2600WTTR

Product Type:  Server Motherboard

Total Number of USB Ports:  8

VGA Port:  Yes

Compatible Product Series:  Intel® Xeon® Processor E5-2600 v4 Family

Number of Total Expansion Slots:  4

Total Number of PCI Express Slots:  2

Number of PCI Express x4 Slots:  1

Number of PCI Express x8 Slots:  1

Number of Memory Slots:  24

Memory Form Factor:  RDIMM, LRDIMM, DIMM

Maximum Memory:  1.50 TB

Memory Speed Supported:  2.13 GHz, 1.87 GHz, 1.60 GHz

Memory Technology:  DDR4 SDRAM

10Gigabit Ethernet:  Yes

Onboard Video:  On-board Video Chipset

Graphics Controller Manufacturer:  Intel

RAID Supported:  Yes

RAID Levels:  0, 1, 10

Number of SATA Interfaces:  10

Environmental Certification:  WEEE, China RoHS

Width:  17"

Depth:  16.7"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

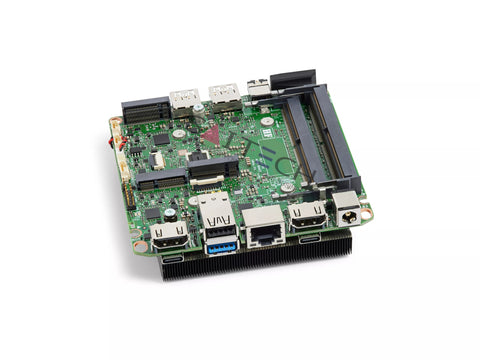

Intel BNUC12WSBI70000 NUC12WSBi7-Series 12Pro Core I7-1260P Wall Street Canyon Motherboard.

Specifications

Model Number:  BNUC12WSBI70000

Brand:  Intel

Alt Part Number(s):  BNUC12WSBI70000

Product Type:  Motherboard

Technical Description

Brand:  Intel

Model:  BNUC12WSBI70000

Series:  NUC12WSBi7

Compatible Processor model:  Core i7-1260P

Processor Cores:  12

Max Turbo Frequency:  4.70 GHz

Motherboard Chipset:  Intel® SoC

Type of Cooling:  Active

Supported Memory Types:  DDR4 SDRAM

Internal Maximum Memory:  64 GB

Memory channels:  Dual channel

Included Graphics Card:  Intel® UHD Graphics

Number of USB Ports:  4

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  UCFF

* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number

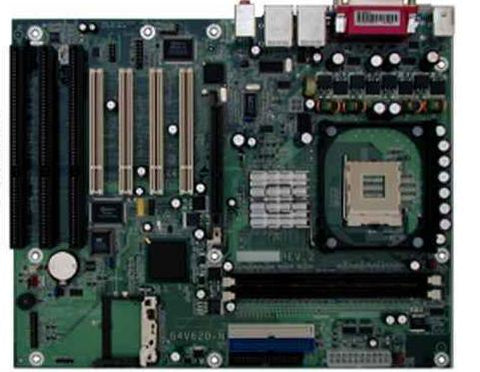

Specifications

Model Number:  G4V620-B-G

Brand:  ITox

Alt. Part Number(s):  G4V622-550MG

Product Type:  Motherboard

Technical Description

Brand:  ITox

Model:  G4V620-B-G / G4V622-550MG

Max Mainboard Size:  ATX

Width:  12 in

Depth:  9.6 in

Chipset Type:  Intel 845GV

Max Bus Speed:  533 MHz

Processor Socket:  Socket 478

Compatible Processors:  Celeron, Pentium 4

Storage Interfaces:  ATA-100 - connector(s): 2 x 40pin IDC

Internal Interfaces:  1 x floppy

Additional Connectors (Optional):  2 x USB 2.0

Memory Type:  2 GB, DDR SDRAM 200 MHz, 266 MHz, 333 MHz, PC1600, PC2100, PC2700, unbuffered

Features

BIOS Type Award

BIOS Features ACPI 1.0b support, ACPI support, APM 1.2 support, DMI 2.0 support, Hyper-Threading Technology

Hardware Monitoring CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage

Sleep / Wake Up RTC (real-time clock) wake up, keyboard wake up, mouse wake up, suspend to RAM (STR), wake on LAN (WOL), wake on ring (WOR)

Hardware Features Watch Dog Timer, chassis intrusion detection

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

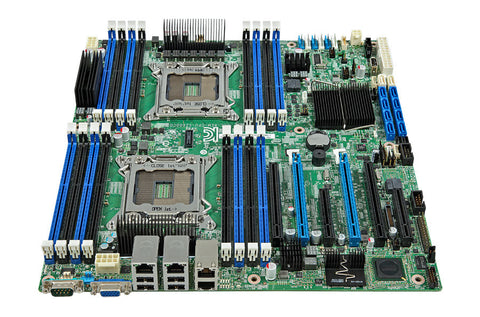

The Intel S2600COE supports up to two Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency

Specifications

Mfr Part Number:  DBS2600COE

Brand:  Intel

Model Number:  S2600COE

Type:  Motherboard

Technical Description

Brand:  Intel

Model:  S2600COE

Socket Type:  Dual LGA 2011

Chipset:  Intel C600-A

Maximum Memory:  512 GB

Memory Technology:  DDR3 SDRAM

Number of DDR3 Slots:  16 x 240pin

Number of Memory Slots:  16

Graphics Controller:  Matrox G200

Onboard Video:  On-board Video Chipset

LAN Chipset:  4 1GbE LAN

Max LAN Speed:  Quad 10/100/1000Mbps

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

No. Of USB Ports:  5

USB 1.1/2.0:  4 x USB 2.0

Form Factor:  SSI EEB

Width:  12 in

Depth:  13 in

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

Mfr Part Number:  H8QM3-2+
CPU:  Quad Socket FSupport up to four Six-Core/ Quad-Core/ Dual-Core AMD Opteron 8000 Series Processors
Support HyperTransport 3.0 Techonology
Chipset:  North Bridge NVIDIA MCP55 Pro & South Bridge NEC uPD720400
Memory:  32x 240pin DDR2-800/ 667/ 533 DIMM Slots, Single or Dual Channel, ECC/REG, Max Capacity of 256GB
Slots:  1x PCI-Express x16 Slot
SAS:  8x SAS / SATA Ports, Support RAID 0, 1, 10
SATA:  6x SATA2 Ports, Support RAID 0, 1, 0+1, 5 and JBOD
IDE:  1x EIDE Channel; Supports UDMA Mode 5, PIO Mode 4 and ATA 100/133
Video:  AMD ES1000 Graphics w/ 16MB Video Memory
LAN:  Intel 82546GB Dual Port Gigabit Ethernet Controller
Ports:  4x USB 2.0 Ports (2 rear, 2 via header), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x RJ45 LAN Ports, 2x Serial Ports (1 rear, 1 via header), 1x Floppy Port
Form Factor:  Proprietary, 16.4 x 13.0 inch / 41.7 x 33.0 cm
RoHS Compliant:  Yes

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

UP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro''s new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.

Overview

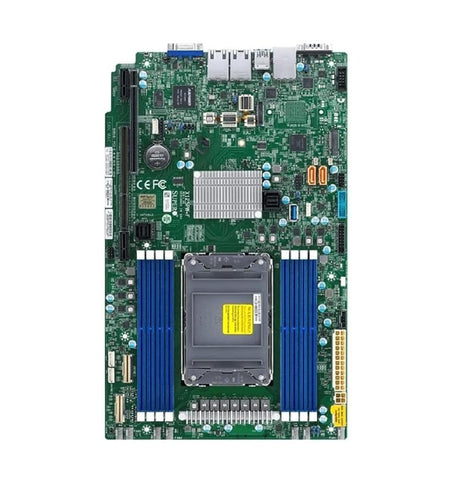

Supermicro MBD-X12SPW-F-B Xeon LGA-4189 2TB DDR4 Proprietary WIO Motherboard

Specifications

Model Number:  MBD-X12SPW-F-B

Brand:  Supermicro

Alt Part Number(s):  X12SPW-F

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SPW-F-B

Processor  Type:  Xeon

Processor Socket:  LGA-4189

Memory Supported:  2TB

Memory Technology:  DDR4

Chipset Type:  Intel C621A

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  Proprietary WIO

Boost your performance with the Supermicro MBD-X12SPW-F-B Xeon LGA-4189 2TB DDR4 Proprietary WIO Motherboard - ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
