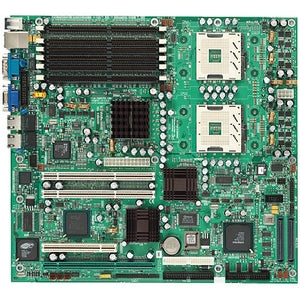

Utilizing the Intel E7501 chipset, and featuring five independent PCI buses, the Thunder i7501 Pro provides maximum performance for today's server applications. Supporting two Intel Xeon Processors with 533MHz Front Side Bus (FSB), and high-performance DDR RAM, the Thunder i7501 Pro incorporates two P64H2 hubs that support four independent PCI-X channels. The Thunder i7501 Pro also features three network ports, including dual Gigabit Ethernet ports. These features, combined with optional Adaptec Ultra320 SCSI, and integrated ATI RAGE XL VGA graphics make this platform the perfect server solution.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

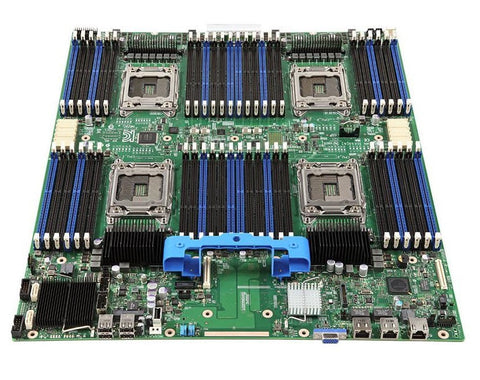

Intel S4600LT2 V2 C600-A Socket-R LGA-2011 DDR3-1600MHz Server Motherboard
Regular price
$171.60
/
Overview
The Intel® Server Board S4600LT2 V2 family is the uncompromising performance and high reliability server board of choice for demanding customers. It features support for four powerful Intel® Xeon® processor E5-4600 V2 and a massive memory capacity of 1.5 TB via 48 memory sockets in a dense, rack-optimized form factor. Six PCIe* Gen 3 x16 slots, two Intel® I/O Expansion Modules, and options for integrated dual 1 Gbe or 10 Gbe provide the expandability and flexibility that enterprise-class customers demand. Available only as part of an integrated 2U system, it includes integrated power distribution, support for up to 10 drives, one mSATA port, and support for the Intel 6 Gb 8-port SAS ROC module and the Intel® Trusted Platform Module. Dedicated management LAN via the Intel® Remote Management Module is optional. The Intel Server Board S4600LT2 V2 family makes use of several exclusive new Intel® Server Board Technology Innovations available only on Intel® Server Products. Intel® Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management; Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency; and Intel® Efficient Power Technology helps improve power efficiency and reliability.
Specifications
Mfr Part Number: S4600LT2 V2
Brand: Intel
Alt Part Number: S4600LT2
Type: Motherboard
Technical Description
Brand: Intel
Model: S4600LT2 V2
Product Line: Intel Server Board
Chipset Type: Intel C600-A
Processor Socket: Socket R
Number of DDR3 Slots: 48 x 240pin
DDR3 Standard: DDR3 1600/1333
Dedicated Video Memory: 16 MB DDR3 SDRAM
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 6
Number of PCI Express x16 Slots: 6
Video Output: graphics adapter
Number of SATA Interfaces: 10
Expansion Slots: 4 x CPU , 48 x DIMM 240-pin , 6 x PCIe 3.0 x16 , 2 x PCIe 3.0 x8
Data Link Protocol: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller: Intel X540
Network: 2 x 10 Gigabit Ethernet
Compatible Processors: Xeon E5-4600 series
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Width: 20.0"
Depth: 16.7"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
A DP Intel processor-based server platform utilizes the 45nm Xeon processors. This versatile platform features eight DDR2 fully-buffered DIMMs, two 64-bit/133MHz PCI-X, two gen 2 PCI-Ex16, one PCI-E x8 slot (x14 links), and one PCI slots. In addition, it provides two GbE LAN, six SATA2, and eight SAS ports for optional connectivity and features.
Audio Output
Type:
None
Cable
Connectivity Details Type:
Floppy cable
Connectivity Details Type:
IDE cable
Connectivity Details Type:
Serial ATA cable
Connectivity Details Type:
Serial / parallel cable
Connectivity Details Type:
USB panel
Connectivity Details Type:
Serial Attached SCSI cable

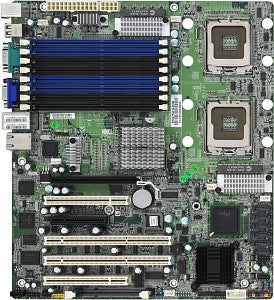

Header
Compatibility:
PC
Manufacturer:
Tyan
Model:
S5393WG2NR
Packaged Quantity:
1
Product Line:
Tyan Tempest i5400PL
Interface Provided
Qty:
2
Type:
LAN (Gigabit Ethernet)
Qty:
1
Type:
Management
Qty:
4
Type:
USB 2.0
Type:
Serial
Type:
VGA
Type:
PS/2 mouse
Type:
PS/2 keyboard
Mainboard
Chipset Type:
Intel 5400A
Compatible Processors:
Dual-Core Xeon , Dual-Core Xeon 5100 series , Dual-Core Xeon 5200 series , Quad-Core Xeon , Quad-Core Xeon 5300 series
Data Bus Speed:
1333 MHz
Form Factor:
Extended ATX
I/O Controller:
Intel 6321 ESB
Multi-Core Support:
Dual-Core / Quad-core
Power Connectors:
24-pin main power connector , 8-pin ATX12V connector
Processor Socket:
LGA771 Socket
RAM Slots:
8 FB-DIMM slots
Supported RAM (Registered or Buffered):
Fully buffered
Supported RAM Integrity Check:
ECC
Supported RAM Speed:
533 MHz , 667 MHz
Supported RAM Standard:
PC2-4300 , PC2-5300
Supported RAM Technology:
DDR2 SDRAM
Mainboard Features
Additional Connectors (Optional):
2 x Hi-Speed USB
BIOS Features:
ACPI 2.0 support , APM 1.2 support , DMI 2.0 support , WfM 2.0 support
BIOS Type:
Phoenix
Hardware Features:
Trusted Platform Module (TPM)
Hardware Monitoring:
CPU core temperature , CPU core voltage
Miscellaneous
Compliant Standards:
DOC , FCC Class B certified , Plug and Play , RoHS

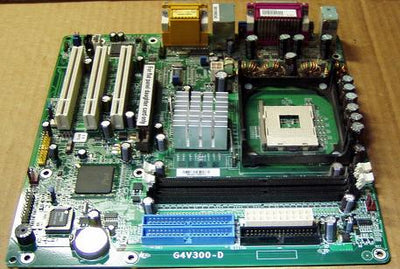

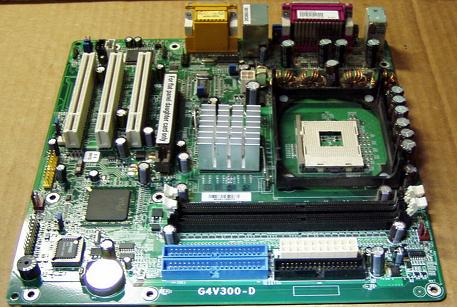

The G4V300-D revision controlled motherboard offers the combination of Intel® Pentium® 4 or Intel® Celeron® processor power (478 pin), with three PCI slots and 1 ADD slot for AGP Digital Display Cards. This microATX motherboard has a great combination of on-board audio, on-board video, on-board LAN, and up to 6 USB 2.0/1.1 ports. The G4V300-D features the Intel® 845GV chipset on a MicroATX format motherboard. The 533MHz system data bus provides a seamless user interaction while other features include read back capability that displays voltage, fan speed, temperature monitoring and a S/PDIF connector offering a digital audio interface.
Supports Intel® Pentium® 4 Processor and Intel® Celeron® Processor
Hyper Threading Technology
Intel® 845GV chipset – 400/533 MHz data bus
On-board Graphics
On-board LAN
On-board Audio
Supports up to 6 USB (2.0/1.1)
Stable product life cycle
Open chassis alarm
Monitors fan speed, temperature, and power supply voltages
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

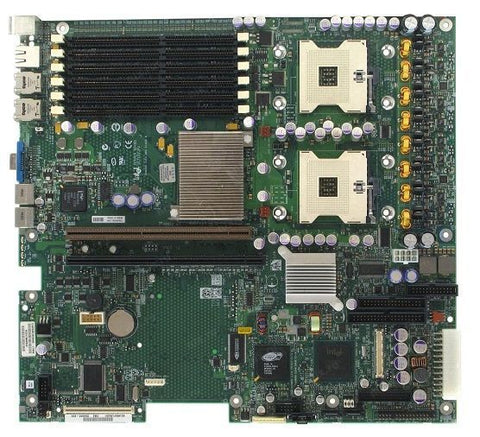

The Intel Server Board SE7520JR2(DDR SATA Model), supported by dual Intel Xeon processors and the Intel E7520 chipset, delivers high levels of performance, reliability and manageability. Together, these capabilities address the needs of enterprise-level computing in space-constrained environments, particularly those running Internet, departmental database, data-center, and other high-transaction applications.
Specifications
Mfr Part Number: SE7520JR2ATAD1
Brand: Intel
Model Number: SE7520JR2ATAD1
Type: Motherboard
Technical Description
Brand: Intel
Model: SE7520JR2ATAD1
Chipset Model: E7520
Socket: Socket-604
Bus Speed: 800 MHz
Processor Technology: Hyper-Threading Technology
Number of Memory Slots: 6
Maximum Memory: 24 GB
Graphics Controller: ATI RAGE XL
Dedicated Video Memory: 8 MB
Network Controller: Intel 82546GB
Network Interfaces: 2 x Gigabit Ethernet
Expansion Slots: 2 x CPU 6 x DIMM 184-pin 1 x expansion slot
Storage Interfaces: SATA-150 -connectors: 2 x 7pin Serial ATA ATA-100 -connectors: 1 x 40pin IDC
Interfaces: 2 x USB 2.0 1 x serial - asynchronous - RJ-45 2 x LAN (Gigabit Ethernet) 1 x VGA 1 x PS/2 keyboard 1 x PS/2 mouse
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form factor:SSI EEB
Width: 12.0"
Depth: 13.0"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Intel® I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
Audio: Realtek ALC888 7.1 HD audio
LAN: 2x RJ45 LAN ports
PCI-Express: 2 (x16) PCI-E 2.0 slots
4 (x8) PCI-E 2.0 slots (1 in x16 slot)
1 (x4) PCI-E 2.0 slot
Form Factor: Enhanced Extended ATX
Dimensions: 13.68" x 13" (34.7cm x 33cm)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
The Supermicro X6DAE-G2 motherboard will blow away the rest of the competition in terms of performance. It has two slots for Socket 604 Xeon processors. The Intel E7525 / ICH5R chipset will ensure your system is running at its best performance without latency. The motherboard can support up to 16GB of DDR2 SDRAM running at 400Mhz /PC2-3200. It supports ECC and registered memory. It has two Gigabit ethernet ports for blazing fast internet speeds. It also supports two SATA hard drives and two ATA hard drives and one floppy drive. The Supermicro X6DAE-G2 has all the features you need to keep your server up running at full performance.
Specifications
Mfr Part Number: X6DAE-G2
Brand: Supermicro
Model Number: X6DAE-G2
Type: Motherboard
Note: With Back Plate
Technical Description
Brand: Supermicro
Model: X6DAE-G2
Chipset: Intel E7525 / Intel ICH5R
Socket: Socket 604
Max Bus Speed: 800 MHz
Interface: Serial ATA-150
Total Ports: 2 x 40pin IDC, 2 x 7pin Serial ATA
Connector Type: mini-jack
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller: Intel 82546GB
Network: 2 x Gigabit Ethernet
Compatible Processors: Xeon
Output Voltage: 208 - 230 V AC
Form Factor:extended ATX
Width:13 in
Depth:13.1 in
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

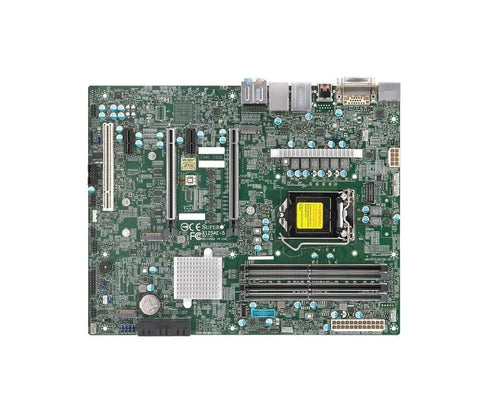

Boost your performance with the Supermicro MBD-X12SAE-5-B LGA-1200 128GB Intel W480 DDR4 ATX Motherboard - ORDER TODAY!
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

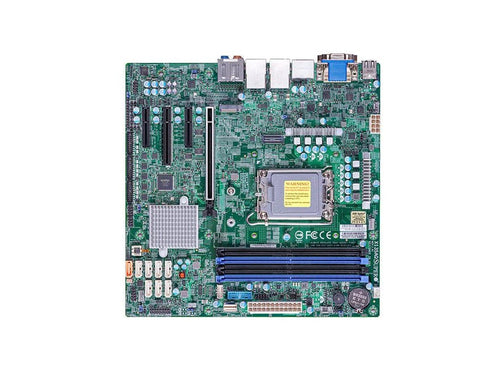

Boost your performance with the Supermicro MBD-X13SAQ-B LGA-1700 128GB DDR5 Micro ATX Motherboard - ORDER TODAY!
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

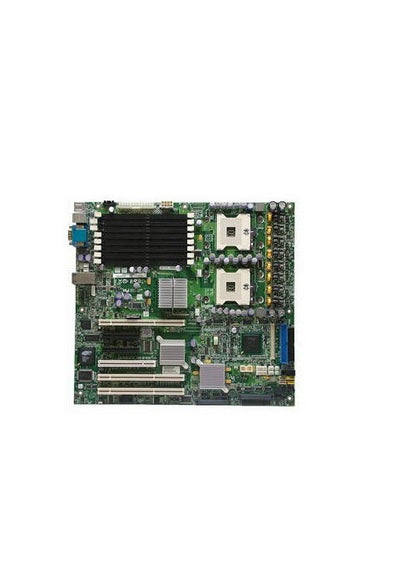

Max Memory Supported: 16 GB DDR2 400 ECC DIMM supported
Channel Supported: Dual Channel
ECC Supported: Yes
Registered: Yes
PCI Express x8: 1
PCI Express x4: 1
PCI-X Slots (64-bit 133MHz): 1
PCI-X Slots (64-bit 100MHz): 2
PCI Slots: 1
PATA: 1 x ATA 100 2 Dev. Max
PATA RAID: 0/1
SATA: 2 x SATA 1.5Gb/s
SCSI: Dual-Chnl Ultra320
SCSI Chipset: via LSI Logic 53C1030 controller
Onboard Video Chipset: ATI RAGE XL SVGA PCI video controller with 8 MB of video memory
LAN Chipset: Intel 82541
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Marvell Yukon-EC 88E8050 PCI-E Gigabit
Second LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2 Ports: 2
COM Ports: 1
Video Ports: 1
USB 1.1/2.0: 2 x USB 2.0
Onboard USB: 2 x USB 2.0
Form Factor: SSI EEB 3.5
Dimensions (W x L): 12" x 13"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

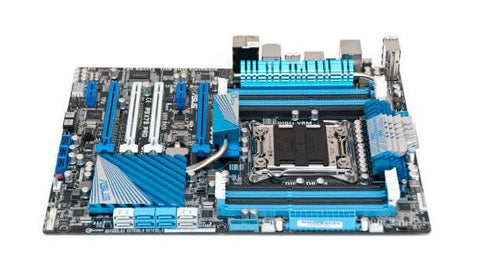

Memory: 8x DDR3-2400(OC)/2133(OC)/1866/1600/1333/1066 DIMMs, Quad-channel, Non-ECC, Un-buffered, Max Capacity up to 64GB
Slots: 4x PCI-Express 3.0 x16 Slots (three run at x8, Supports AMD Quad- CrossFireX and nVidia 3-Way SLI); 2x PCI-Express 2.0 x1 Slots
SATA: 4x SATA3 Ports(two Support RAID 0, 1, 5, 10), 4x SATA2 Ports, Support RAID 0, 1, 5, 10; 2x Power eSATA3 Ports
Audio: Integrated Realtek ALC898 8-Channel High Definition Audio CODEC
LAN: Intel 82579V Gigabit LAN controller; Bluetooth V2.1+EDR
Ports: 12x USB 2.0 Ports (6 rear, 6 at midboard); 6x USB 3.0 Ports (4 rear, 2 at midboard); 2x Power eSATA3 Ports; 1x RJ45 LAN Port; 1x Optical S/PDIF Output; 1x Bluetooth module; Audio I/O Jacks
Power Connector: 1x 24pin Main Power; 1x 8pin CPU Power
Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
Product Type: Motherboard
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

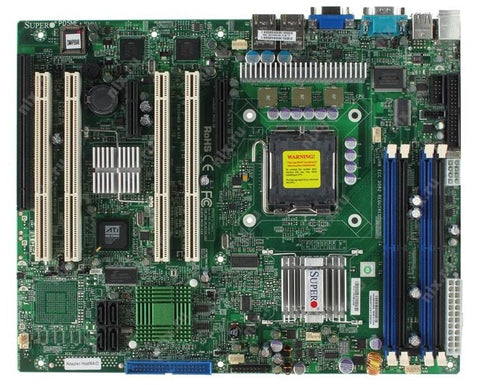

The PDSME supports single Intel Pentium D, Pentium 4 Extreme Edition, Pentium 4, Celeron D LGA775 Processors at system bus speeds of 1066 MHz, 800 MHz and 533 MHz. The PDSME supports the Intel Hyper-Threading (HT) Technology, the EM64T Technology, the Enhanced Intel SpeedStep Technology(EIST) and the Matrix Storage Technology. With additional high-speed PCI-X 133/100 expansion slots, this entry-level server delivers excellent cost-effective expandability and performance to handle small business computing workloads. Standard features also include gigabit connectivity and 3Gps SATA storage.
Specifications
Model Number: PDSME+
Brand: Supermicro
Alt Part Number(s): PDSME+ REV.1.1
Product Type: Server Motherboard
Note: New Motherboard Only (Accessory Not Included)
Technical Description
Brand: Supermicro
Model: PDSME+ / PDSME+ REV.1.1
CPU Socket Type: LGA 775
CPU Type: Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Celeron D / Pentium Extreme Edition / Pentium D / Xeon Dual-Core / Xeon Quad-core
FSB: 800 MHz / 1066 MHz / 533 MHz
Supported CPU Technologies: Enhanced SpeedStep Technology
Onboard Video Chipset: ES1000
Number of Memory Slots: 4
Maximum Memory Supported: 8GB
Total Processor Supported: 1
Number of IDE Interfaces: 1
Total Number of Onboard USB Ports: 1
Graphics Controller Memory: 16 MB
Total Number of PCI Express Slots: 2
Chipset Model: Intel 3010
Number of SATA Interfaces: 4
Number of PCI-X Slots: 4
Number of Total Expansion Slots: 7
Memory Technology: DDR2 SDRAM
Controller Type: Floppy Controller, Serial ATA/300, Ultra ATA/100 (ATA-6)
64-bit Processing: Yes
RAID Supported: Yes
Network (RJ-45): Yes
Max LAN Speed: Yes
PS/2 Ports: 3
Form Factor: ATX
Width: 12.0"
Depth: 9.6"
