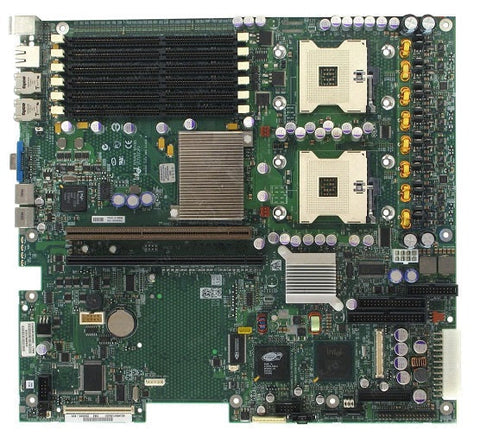

The Intel Server Board SE7520JR2(DDR SATA Model), supported by dual Intel Xeon processors and the Intel E7520 chipset, delivers high levels of performance, reliability and manageability. Together, these capabilities address the needs of enterprise-level computing in space-constrained environments, particularly those running Internet, departmental database, data-center, and other high-transaction applications.
Specifications
Mfr Part Number: SE7520JR2ATAD1
Brand: Intel
Model Number: SE7520JR2ATAD1
Type: Motherboard
Note: Without Accessories
Technical Description
Brand: Intel
Model: SE7520JR2ATAD1
Chipset Model: E7520
Socket: Socket PGA-604
Bus Speed: 800 MHz
Processor Technology: Hyper-Threading Technology
Number of Memory Slots: 6
Maximum Memory: 24 GB
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form factor:SSI EEB
Width: 12.0"
Depth: 13.0"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Video Output / Type: Graphics adapter
Video Output / Graphics Processor: Matrox MGA G200Ew
Network Controller: Intel 82576
Network Interfaces: 2 x Gigabit Ethernet
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Intel S5520HC i5520 LGA1366 Socket SSI EEB Server Board
Regular price
$155.60
/
Overview

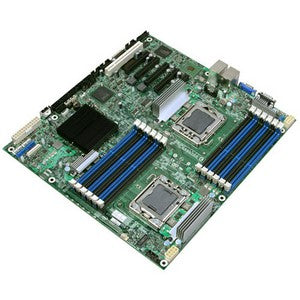

The Intel Server Board S5520HC targets applications such as database, email, storage, and virtualization. Scalable management with integrated and optional features includes Intel Server Deployment Toolkit, Intel Active System Console, and power management with Intel Intelligent Power Node Manager.
Specifications
Model Number: S5520HC
Brand: Intel
Alt Part Number(s): S5520HC
Product Type: Server Board
Technical Description
Brand: Intel
Model: S5520HC
Interface: Serial ATA-300
Maximum Memory: 96 GB
Number of Memory Slots: 9
Max Supported Qty: 2
Technology: DDR2 SDRAM
Video Output: Graphics adapter
RAM Slots: 12 DIMM slots
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: SSI EEB
Width: 12"
Depth: 13"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

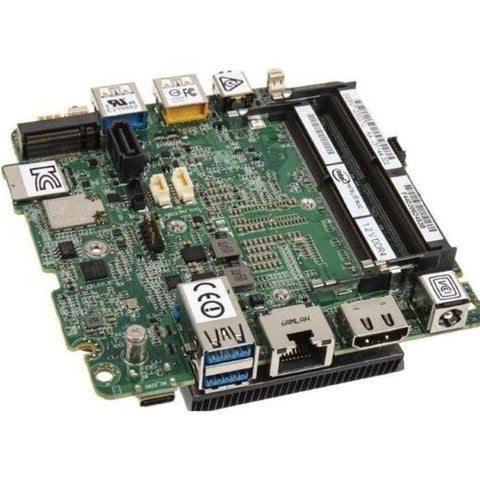

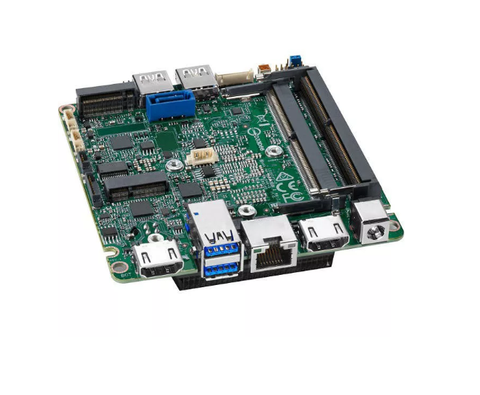

Processor Included: Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
Embedded Options Available: No
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2133 1.2V SO-DIMM
Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s
Max DIMMs: 2
ECC Memory Supported: No
Integrated Graphics: Yes
Graphics Output: HDMI 2.0a; USB-C (DP1.2)
Displays Supported: 3
PCI Express Revision: Gen3
PCI Express Configurations: M.2 slot with PCIe x4 lanes
Removable Memory Card Slot: SDXC with UHS-I support
M.2 Card Slot (storage): 22x42/80
USB Ports: 6
USB Revision: 2.0, 3.0
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F + 0
Total SATA Ports: 2
Max SATA 6.0 Gb/s Ports: 2
Audio (back channel + front channel): 7.1 digital (HDMI mDP); L+R+mic (F)
Integrated LAN: 10/100/1000
Integrated Wireless: Intel® Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
Additional Headers: CEC, 2x USB2.0, FRONT_PANEL
Total Thunderbolt™ 3 Ports: 1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

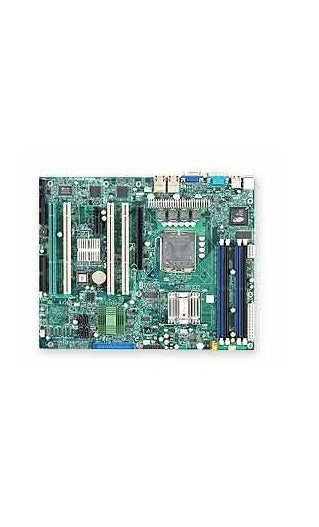

Supermicro PDSME IE7230 LGA775-Socket Serial ATA-300 1066Mhz ATX Motherboard
Regular price
$159.60
/
Specifications
Model Number: PDSME
Brand: Supermicro
Alt Part Number(s): PDSME
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: PDSME
Chipset Type: Intel E7230 / Intel ICH7R
Processor Socket: LGA775 Socket
Max Bus Speed: 1066 MHz
Dedicated Video Memory: 8 MB
Graphics Controller: ATI RAGE XL
Storage: ATA-100, Serial ATA-300 (RAID)
Connector(s): 1 x 40pin IDC, 4 x 7pin Serial ATA
Power Connectors: 24-pin main power connector, 20-pin main power connector
Expansion Slots: 1 x PCIe x4 2 x PCI-X / 133 MHz (3.3 V) 2 x PCI-X / 100 MHz (3.3 V) 4 x DIMM 240-pin
Storage Interfaces: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ATA-100 –connectors
Interfaces: 2 x LAN (Gigabit Ethernet) 2 x USB 2.0 1 x PS/2 mouse 1 x PS/2 keyboard 1 x VGA 1 x serial
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: ATX
Width: 12 in
Depth: 9.6 in
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Hardware Monitoring CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage
Sleep / Wake Up suspend to RAM (STR), wake on LAN (WOL), wake on modem (WOM)
Hardware Features Watch Dog Timer, chassis intrusion detection
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

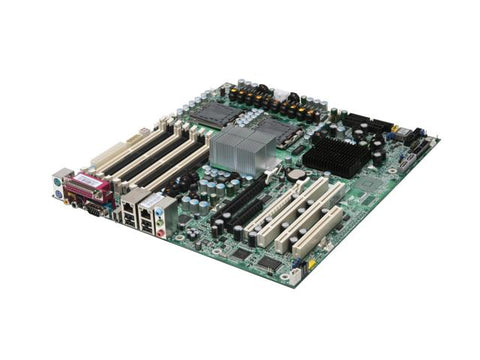

The Tyan Tempest I5400XT S5396A2NRF motherboard will provide reliable performance for all your needs. It has dual LGA771 sockets with support for two Intel Xeon Quad-Core/Dual Core Processors from the 5100, 5200, 5300, 5400 series. The motherboard can support up to 64GB of DDR2 memory with eight 240-pin slots. It also supports up to DDR2 667 memory speeds. It also has support for ECC and registered FBDIMM memory. The motherboard also has support for dual Gigabit ethernet for lightning fast connections.
Specifications
Model Number: S5396A2NRF
Brand: Tyan Computers
Mfr Part Number: S5396A2NRF
Type: Motherboard
Note: Back Plate
Technical Description
Brand: TYAN
Model: S5396A2NRF
Socket Type: Dual LGA 771
CPU Type: Dual Intel Xeon Quad-Core/ Dual-Core Processors 5100/ 5200/ 5300/ 5400 Series
System Bus: 1333/1066MHz
Chipsets: Intel 5400, Intel 6321ESB
Other Chipset: Winbond W83627EHG Super I/O Chip
DDR2 Slots: 8 x 240Pin
DDR2 Standard: DDR2 667
Memory Supported: Maximum of 64/32 GB DDR2-533/667
ECC Supported: Yes
Registered: FBDIMM
PCI Express x16: 2
PCI Express x8: One (1) PCI Express x8 slot (x8 signal from 6321ESB), PCI-X Slots (64-bit 133MHz) 2
PCI Slots: 1
PATA: 1 x ATA 100 2 Dev. Max
SATA: 6 x SATA 3.0Gb/s
SATA RAID: 0/1/5/10
Audio Chipset: Realtek ALC888
LAN Speed: 10/100/1000Mbps
Second LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2 Ports: 2
COM Ports: 1
LPT Ports: 1
IEEE 1394: 1 x IEEE 1394a
Form Factor: SSI / Extended ATX
Dimensions: 12.0" x 13.0"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

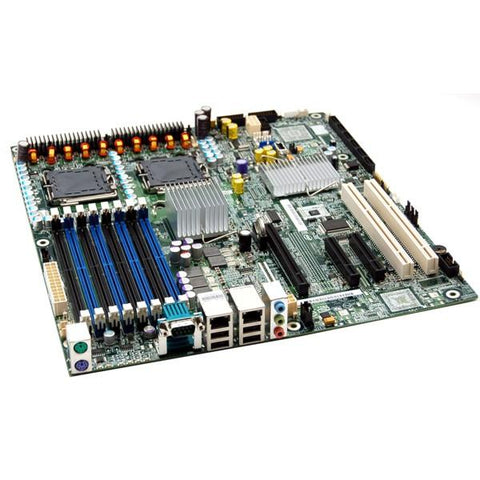

The Intel Workstation Board S5000XVN(SATA) provides incredible performance and memory capacity for demanding workstation operations. This workstation board is ideal for customers needing server class performance and reliability, in addition to high-end graphics. The S5000XVN(SATA) is acoustically optimized to minimize distractions in shared environments.
S5000XVNSATA Specifications
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: 5000X
Total Processor Supported: 2
Processor Socket: Socket J LGA-771
Processor Supported: Xeon
Front Side Bus: 667 MHz
Front Side Bus: 1066 MHz
Front Side Bus: 1333 MHz
Memory
Number of Memory Slots: 8
Maximum Memory: 32 GB
Memory Standard: DDR2-533/PC2-4200
Memory Standard: DDR2-667/PC2-5300
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type: Serial ATA/300
Controller Type: Ultra ATA
Audio
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC260
Audio Channels: 2.0
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Number of PCI-X Slots: 2
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 1
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 1
Onboard LEDs Header: Yes
Physical Characteristics
Width: 12.0"
Depth: 13.0"
System BIOS
BIOS Type:
Intel Extensible Framework
BIOS Features:
Rolling BIOS
SMBIOS
PnP
APM
DMI
PCI
ACPI
* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Tyan Thunder I7520 (S5360) S5360G2NR Dual Xeon SKT-604 Video 2Gb LAN E-ATX Motherboard: OEM Bare
Regular price
$159.60
/

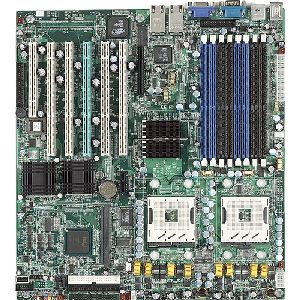

Flexibility and performance represent the key capabilities of the Tyan Thunder i7520 (S5360). Based on Intel's next generation E7520 server chipset, the Thunder i7520 delivers cutting-edge features such as dual Intel Xeon "Nocona" support with EM64T (64-bit architecture), up to 16 GB of DDR333 Registered ECC memory, multiple PCI-X 133 and 100MHz slots, PCI Express support, and dual PCI-X Gigabit Ethernet ports. Other incredible features include onboard Serial ATA with RAID, active system management functions, remote management option, and storage expansion options through Tyan's TARO SO-DIMM add-on modules.
S5360G2NR Product Overview
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: E7520
Total Processor Supported: 2
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket PGA-604
Processor Supported: Xeon
Front Side Bus: 800 MHz
Memory
Number of Memory Slots: 8
Maximum Memory: 16 GB
Memory Standard: DDR266/PC2100
Memory Standard: DDR333/PC2700
Memory Technology: DDR SDRAM
I/O Controller
Controller Type: Ultra ATA/100 (ATA-6)
Controller Type: Floppy Controller
Controller Type: Serial ATA/150
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8 MB
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Number of PCI Slots: 1
Number of PCI-X Slots: 4
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 2
Number of SATA Interfaces: 2
Total Number of Onboard USB Ports: 1
Onboard LEDs Header: Yes
Physical Characteristics
Width: 12.0"
Depth: 13.0"
Miscellaneous
Package Contents:
1 x S5360 Server Board
1 x 80-pin Ultra-DMA-133/100/66/33 IDE Cable
1 x Serial ATA Driver Diskette
1 x Serial ATA Power Cable
2 x Serial ATA Cables
1 x User's Manual
1 x Quick Reference
1 x Driver CD
1 x I/O Shield
Additional Information:
Chipset:
Intel E7520 chipset, consisting of:
Northbridge: Memory Controller Hub (MCH)
Southbridge: I/O Controller Hub (ICH5R)
I/O Bridge: 6700PXH
Operating System Support:
Microsoft Windows XP
Microsoft Windows 2000 Advanced Server
Microsoft Windows Server 2003
Microsoft Windows NT4.0
RedHat 8.0, 9.0
SuSE Server 8.0
Expansion Slots:
One proprietary 200-pin TARO SO-DIMM connector (on PCI-X bus)

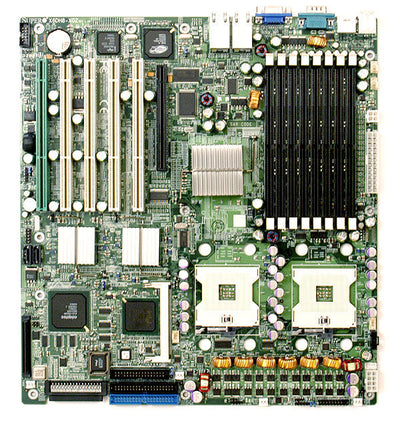

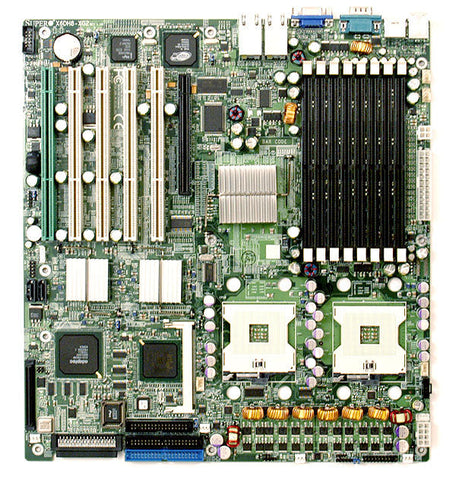

Supermicro X6DH8-XG2 Dual XEON Socket-604 E7520 Video LAN Extended-ATX Motherboard
Regular price
$159.60
/
Specifications
Model Number
X6DH8-XG2
Condition
Refurbished Board Only (Accessory Not Included)
Brand
Supermicro
Alt Part Number(s)
X6DH8-XG2-B
Type
Motherboard
Long Description
Supermicro X6DH8-XG2 supports single or dual Intel Nocona processors at 800 MHz front side bus. Based upon Intel's NetBurst microarchitecture, the Nocona processor supports the IA-32 software and includes features found in the Xeon processor such as Hyper Pipelined Technology, which includes a multi-stage pipeline, allowing the processor to operate at much higher core frequencies. Packaged in a 604-pin Flip Chip Micro Pin Grid Array (FC-mPGA4) platform in a Zero Insertion Force (ZIF) socket (mPGA 604), the Nocona Processor (800 MHz) which supports Hyper-Threading Technology and Intel EM64T, is ideal for high performance workstation and server environments with up to two processors on one system bus.
Features
Integrated Input/Output Ports:
USB 2.0 x 5
Serial Port x 2
RJ45 Lan Port x 2
PS/2 Mouse x 1
PS/2 Keyboard x 1
Floppy Port x 1
Expansion Slots
PCI Express x16 x 1
PCI Express x4 x 1
PCI-X 64 Bit (133/100/66 MHz) x 3
PCI-X 64 Bit (100/66 MHz) x 2
RAID Support
RAID 0
RAID 1
RAID 10
JBOD Support
SATA RAID 0
SATA RAID 1
Storage Controller Type(s) Serial ATA x 2, SCSI Ultra320 x 2, DMA/ATA-100 (Ultra) x 2
South Bridge Chip Intel ICH5R
Processor Socket Type Socket 604
Max supported CPUs qty 2
Memory Type DDR2 SDRAM, Number of Memory Slots 8 x 240 Pin DIMMs, Supported RAM speeds 400 MHz, Max Supported RAM 16 GB
Audio / Video: Video Out Ports 15 Pin D-Sub VGA port x 1, Video Interface PCI, On Board Graphic Processor ATI Rage XL
Installed Video Memory 8 MB
