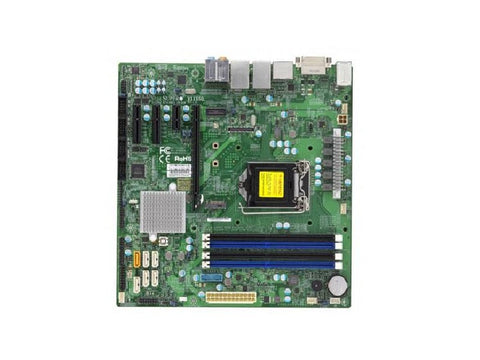

Boost your performance with the Supermicro MBD-X11SSQ-O LGA-1151 64GB Intel Q170 DDR4 M-ATX Motherboard - ORDER TODAY!
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

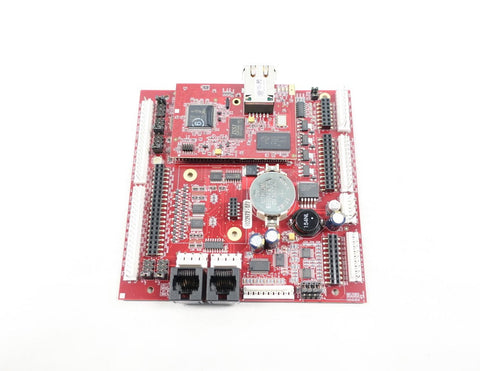

Digi International 20-101-0889 Rabbit 3000 Single core Single Board Computer
Regular price
$115.60
/
Overview
Digi International 20-101-0889 Rabbit 3000 Single coreSingle Board Computer
Specifications
Model Number: 20-101-0889
Brand: Digi International
Alt Part Number(s): 20-101-0889
Product Type: Single Board Computer
Technical Description
Brand: Digi International
Model Number:20-101-0889
Processor / Core: Rabbit 3000, Single core
Processor Speed: 44.2MHz
RAM: 512KB
Interfaces: RS‑232 / 422 / 485 : 5 Ports
Digital I/O: 36 lines
Analog I/O: 8 analog inputs, 4 Analog Outputs
Ethernet: 10/100Mbps, 1 Port
Power: 3.4W
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Supermicro PDSM4 / PDSM4-B E7230 ULTR320 SCSI SATA(RAID) Video LAN ATX Motherboard
Regular price
$118.00
/
Specifications
Model Number: PDSM4
Condition: OEM
Brand: Supermicro
Mfr Part Number: PDSM4
Type: Motherboard
Technical Description
Brand: SUPERMICRO
Model: PDSM4
Socket Type: LGA 775
CPU Type: Intel Pentium 4 / Pentium 4 EE / Pentium / Celeron
System Bus: 1066/800/533MHz
CPU Technologies: Hyper-Threading Technology
Chipsets: Intel E7230, Intel ICH7R
DDR2 Slots: 4 x 240Pin
DDR2 Standard: DDR2 667
Max Memory Supported: 8GB
Channel Supported: Dual Channel
ECC Supported: Yes
PCI Express x4: 1
PCI-X Slots: 2 (64-bit 133MHz), 2 (64-bit 100MHz)
SATA: 4 x SATA 3.0Gb/s
SATA RAID: 0/1/10/5
SCSI: Single-Chnl Ultra320
SCSI RAID: HostRAID 0, 1, 10 Supported, Support for Zero-Channel RAID
SCSI Chipset: Adaptec AIC-7901
Video Chipset: ATI RAGE XL
LAN Chipset: Intel 82573V
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Intel 82573L
Second LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2: 2
COM: 1
Video Ports: D-Sub
USB 1.1/2.0: 2 x USB 2.0
Onboard USB: 4 x USB 2.0
Form Factor: ATX
Dimensions: 12.0" x 9.6"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
8th Generation Core™ Processor Based MotherboardsB360/Q370/H310 chipset / Socket H4 BoardsSupermicro''s single processor Socket H4 designs feature the Intel® B360/Q370/H310 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.

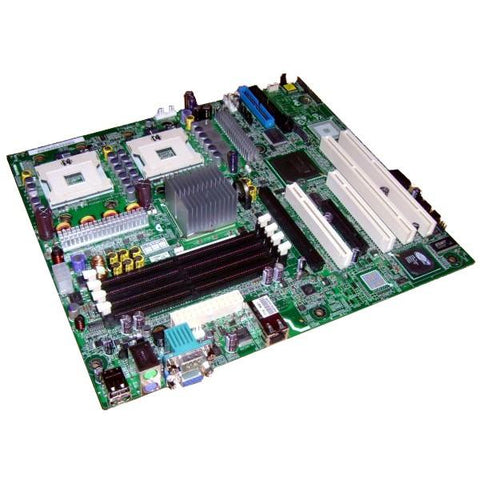

Intel SE7525RP2 E7525 Dual Xeon Socket-604 SATA(Raid) Video Gb E-ATX Server BareMB: No Accessories
Regular price
$118.00
/
With support for dual 64-bit Intel Xeon processors with an 800 MHz system bus and the Intel E7525 chipset, Intel Server Board SE7525RP2 is capable of powering solutions ranging from entry-level to enterprise-critical. Another capability, vital for running high-end graphics applications, is the board's support for up to 8 GB of Registered ECC DDR 2 400 SDRAM, dual-interleaved for improved performance.
For solutions requiring especially fast I/O, the board features next-generation PCI Express interconnect technology, which also expands application functionality by providing a common foundation for serial connectivity among servers, desktops, mobile devices, and other communications platforms.
SE7525RP2 Specifications
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: E7525
Total Processor Supported: 2
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket PGA-604
Processor Supported: Xeon
Front Side Bus: 800 MHz
Memory
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Standard: DDR2-400/PC2-3200
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type: Floppy Controller
Controller Type: Serial ATA/150
Controller Type: Ultra ATA/100 (ATA-6)
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8 MB
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Number of PCI Slots: 2
Number of PCI-X Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 1
Number of SATA Interfaces: 2
Total Number of Onboard USB Ports: 1
Onboard LEDs Header: Yes
Physical Characteristics
Width: 12.0"
Depth: 10.6"
Miscellaneous
Package Contents:
1 x SE7525RP2 Server Board
Cable kit
I/O Shield
Quick Start User Guide
Board-configuration label
Intel Server Management 8 CD Pack containing:
Technical Information
Server Product Information
Drivers, Utilities and Web links
Customer Support Information
CD-ROM with Intel Server Manager 8 family of software
Intel Server Deployment Toolkit with Intel Express Installer
Intel Server Maintenance And Reference Training (SMaRT) Tool Software
Additional Information:
Chipset:
Intel E7525 chipset components:
Memory Controller Hub (MCH)
6300ESB I/O Controller Hub (ICH)
Memory Controller Hub (MCH):
The MCH integrates the following main functions:
An integrated high performance main memory subsystem
An PCI Express bus which provides an interface to the PXH/PXHD or PCI Express devices
A HL 1.5 bus which provides an interface to the 6300ESB ICH
Other features provided by the MCH include the following:
Full support of ECC on the processor bus
Full support of Intel x4 SDDC on the memory interface with x4 DIMMs
Twelve deep in-order queue, two deep defer queue
Memory scrubbing
6300ESB I/O Controller Hub (ICH):
The primary role of the 6300ESB ICH is to provide the gateway to all PC-compatible I/O devices and uses the following the features:
PCI, PCI-X bus interface
LPC bus interface
IDE interface, with Ultra DMA 100 capability
Universal Serial Bus (USB) 2.0 interface
PC-compatible timer/counter and DMA Controllers
APIC and 8259 Interrupt Controller
Power Management
System RTC
General purpose I/O (GPIO)
Processor Support:
The Intel Server Boards SE7320EP2 and SE7525RP2 support one or two processors in the 604-pin FCPGA package. When two processors are installed, both must be of identical revision, core voltage, and bus/core speed. When only one processor is installed, it must be in the socket labeled CPU0. The other socket must be empty.
Processor Support Circuitry Consists Of The Following:
Processors must be populated in sequential order
Processor socket 1 must be populated before processor socket 2
The board is designed to provide up to 105A of current per processor
Processors with higher current requirements are not supported
No terminator is required in the second processor socket when using a uni-processor configuration
Reset configuration logic
Processor module presence detection logic
Server management registers and sensors
Memory:
DIMMs banks must be populated in order starting with the slots furthest from MCH. Dual rank DIMMs must be populated before single rank DIMMs. A total of four DIMMs can be populated when all four DIMMs are dual rank DDR2-400 DIMMs.

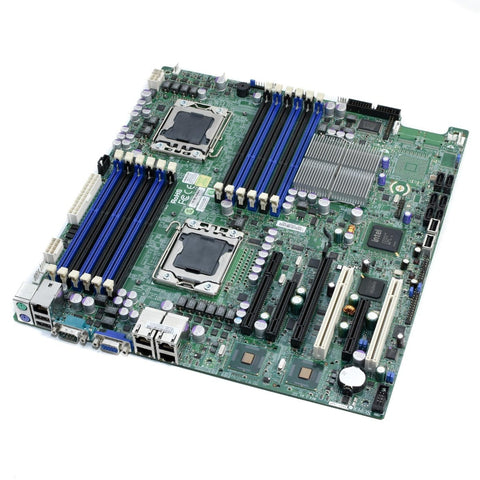

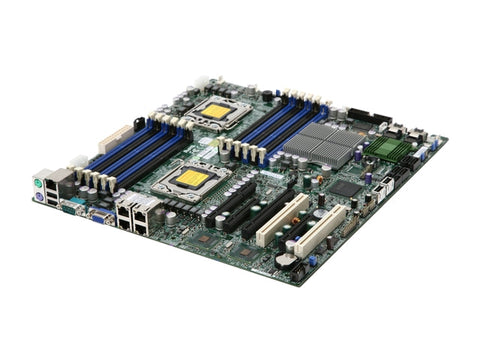

CPU: Dual LGA1366, QPI up to 6.4 GT/s, Supports up to two Intel 64-bit Xeon processors - Intel Xeon 5600 Series (Westmere) Processors, Intel Xeon 5500 Series (Nehalem-EP) Processors
Chipset: North Bridge Intel 5520 & South Bridge ICH10R + IOH-36D
Memory: 12x DDR3-1333/1066/800 DIMM Slots, Supports up to 192GB ECC/REG Memory or up to 48GB ECC/Non ECC Unbuffered Memory
Ports: 8x USB Ports (2 rear, 4 via header, 2 on-board); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 1x Serial Port; 4x RJ45 Ports; 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
RoHS Compliant: Yes
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Expansion Slots: 2 x CPU , 12 x DIMM 240-pin (1.5 V) , 1 x PCIe 2.0 x8 , 1 x PCIe x4
Video Output: Graphics Adapter
Graphics Processor: Matrox MGA G200
Interface: Serial ATA-300
Connector(s): 6 x 7pin Serial ATA
RAM Technology: DDR3 SDRAM
RAM Speed: 1066 MHz, 1333 MHz, 800 MHz
RAM Standard: PC3-10666, PC3-6400, PC3-8500
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller: 2 x Intel 82576
Network: 4 x Gigabit Ethernet
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: extended ATX
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
PC Health Monitoring:Chassis intrusion detection (through LDCM);Chassis intrusion header; SDDC
