Motherboards

Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151) Supermicro''s single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Specifications:

xml:

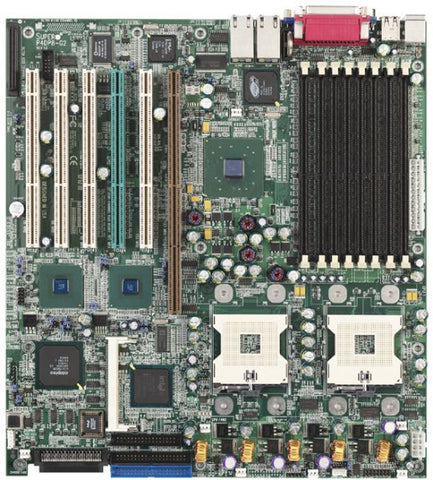

Overview

X5DP8-G2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Specifications

Mfr Part Number:  X5DP8-G2

Brand:  Supermicro

Model Number:  X5DP8-G2

Type:  Motherboard

Note:  Refurbished Motherboard Only (Accessory Not Included)

Technical Description

Brand:  Supermicro

Model:  X5DP8-G2

Chipset Manufacturer:  Intel

Chipset Model:  E7501

Total Processor Supported:  2

Processor Technology:  Hyper-Threading Technology

Processor Socket:  Socket PGA-604

Processor Supported:  Xeon

Front Side Bus:  400 MHz, 533 MHz

Number of Memory Slots:  8

Maximum Memory:  16 GB

Memory Standard:  DDR200/PC1600, DDR266/PC2100

Memory Technology:  DDR SDRAM

Controller Type:  Floppy Controller, Ultra320 SCSI, Ultra ATA/100 (ATA-6)

Onboard Video:  On-board Video Chipset

Graphics Controller Manufacturer:  ATI

Graphics Controller Model:  Rage-XL

Graphics Controller Memory:  8 MB

Gigabit Ethernet:  Yes

Number of Total Expansion Slots:  6

Number of PCI-X Slots:  6

Total Number of USB Ports:  2

Number of USB 2.0 Ports:  2

Parallel Port:  Yes

Serial Port:  Yes

VGA:  Yes

Network (RJ-45):  Yes

Number of IDE Interfaces:  2

Number of SCSI Interfaces:  2

Total Number of Onboard USB Ports:  3

Onboard LEDs Header:  Yes

Width:  12.0"

Depth:  13.1"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

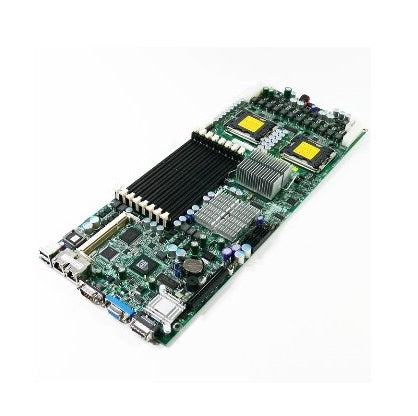

Specifications

Model Number:  X7DBT

Brand:  Supermicro

Alt Part Number(s):  X7DBT

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model:  X7DBT

Processor Socket:  LGA771 Socket

Max Bus Speed:  1333 MHz

Max Processors Qty:  2

Interface Type:  PCI

Chipset Type:  Intel 5000P

Memory:  32 GB

Memory type:  DDR2 SDRAM

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  16.0”

Depth:   6.5”

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

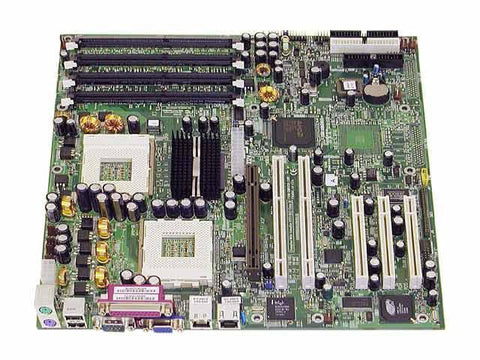

Specifications

Mfr Part Number:  S2469GN

Brand:  Tyan Thunder

Model Number:  S2469GN

Type:  Motherboard

Note:  Without Accessories

Technical Description

Brand:  Tyan Thunder

Model:  S2469GN

Chipset:  AMD-760 MPX

Product Line:  Tyan Thunder K7X Pro

Socket:  Socket A

Memory:  4 MB

Bus Speed:  266 MHz

Interface:  ATA-100

Total Ports:  2 x 40pin IDC

Data Link Protocol:  Ethernet, Fast Ethernet, Gigabit Ethernet

Network:  Ethernet, Gigabit Ethernet

Compatible Processors:  Athlon MP

Output Voltage:  208 - 230 V AC

Form Factor:  extended ATX

Width:  12 in

Depth:  13 in

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
