Motherboards

Specifications

Model Number:  BLKD815EEA2

Brand:  Intel

Alt Part Number(s):  D815EEA2

Product Type:  Motherboard

Technical Description

Brand:  Intel

Model:  BLKD815EEA2

Product Type:  System Board

Form Factor:  ATX

CPU Socket Type:  Socket 370

Supported CPU(s):  Intel Celeron Processor, Intel Pentium III Processor

FSB Speed (Maximum):  133 MHz

North Bridge Chipset:  Intel 815EP

Memory Controllers:  3

Memory Standard(s):  PC133 SDRAM

Max Installed Memory:  512 MB

Expansion Slots:  AGP, PCI

Storage Controller:  (ATA-6) Ultra ATA/100, Floppy Connector

Audio Controller:  On-board

Connectors/Ports:  Serial, Parallel, USB, PS/2, Audio-Out, Audio-In, Microphone, Video-Out

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

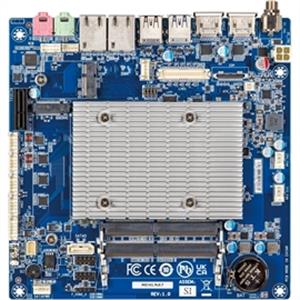

Thin Mini-ITX Embedded Motherboard with Intel® Celeron® J6412 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 9 x USB

Specifications

Model Number: ITXL-6412A

Brand: Gigabyte

Alt Part Number(s):  ITXL-6412A

Product Type: Motherboard

Technical Description

Brand: Gigabyte

Model: ITXL-6412A

Form Factor: Thin Mini-ITX (170 × 170 mm)

Processor: Intel® Celeron® J6412 (10nm, 4 cores / 4 threads, up to 2.60 GHz, 10W TDP)

Socket: FCBGA1493 (soldered)

Memory: 2 × DDR4 SO-DIMM slots, up to 32 GB, dual-channel, 3200 MHz

Graphics: Intel® UHD Graphics

2 × HDMI 2.0 (4096 × 2160 @ 60Hz)

1 × eDP or LVDS (one active at a time)

Supports 3 independent displays

Ethernet: 2 × Gigabit LAN ports

Audio: Realtek ALC897, 2 × audio jacks (Line out, Mic in)

Storage: 1 × SATA 6Gb/s port

Expansion Slots:

1 × PCIe x1 (Gen3)

1 × M.2 2280 M-Key (PCIe x2 / SATA)

1 × M.2 2230 E-Key (PCIe x1 / USB 2.0)

USB Ports:

Rear I/O: 3 × USB 3.2 Gen 1, 1 × USB 2.0

Internal: 5 × USB 2.0 headers

Power: DC Jack (12V / 19–24V DC input)

Operating Temperature: 0°C to 60°C

OS Support: Windows 10 (64-bit)

Boost your enterprise performance with the Gigabyte MB ITXL-6412A Celeron J6412 Thin Mini-ITX—ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

• Mfr Part Number: P2B
• Features:
  • Compact design with embedded notebook-quality battery fits easily into any briefcase
  • 350 lumens-rated long-life LED light source for HD 1280 x 800 visuals
  • Quick setup time with instant on/off capability and auto keystone correction
  • Short throw projection of 42" from just 1 meter from the screen
  • Built-in HDMI/MHL, mini VGA, USB port, microSD card reader, earphone out, and speaker
  • PC-Free Office Viewer and Multimedia Playback for videos, photos, music
• Display
  • Display Technology: 0.45'' DLP
  • Light Source: R/G/B LED
  • Light Source Life: 30,000 hours (Max)
  • True Resolution: WXGA (1280 x 800) (Native)
  • Light Output: 350 lumens (Max)
  • Contrast Ratio: 3500:1
  • Color Saturation:100% (NTSC)
  • Display Colors:16.7 Million
• Projection Lens:
  • Throw Ratio: 1.1
  • Projection Distance: 0.5 ~ 3.0 meters
  • Projection/Screen Size: 20 ~ 120 inch
  • Zoom Ratio: Fixed
• Video:
  • Picture Modes: 7 Modes (Black board/ White board/ Dynamic Mode/ Scenery Mode/ Theater Mode/ Standard Mode/ sRGB Mode)
  • Keystone Adjustment: Digital (Up to +/- 40 degree)
  • Auto Keystone: Yes
  • Aspect Ratio: 4:3/ 16:9/ 16:10/ Square
  • Projector Placement: Front Table/ Front Ceiling/ Rear Table/ Rear Ceiling
• Audio: Built-in 1x 1.5W Speakers
• Interface:
  • Signal Input: HDMI, MHL, VGA
  • Audio Input: Earphone Out
  • USB Port: 1x USB 2.0 Type A port
  • Card Reader: Micro SD
  • Internal Memory: 2 GB available for user usage
• Multimedia Formats Supported:
  • Video: 3gp, 3g2, ASF, AVI, DAT, FLV, M4V, MKV, MOV, MP4, MPG, TS, VOB, WMV
  • Audio: AAC, APE, FLAC, MP1, MP2, MP3, OGG, WAV, WMA
  • Picture: JPEG, BMP, PNG, JPG
  • Document Viewer: Adobe PDF, Microsoft PowePoint, Microsoft Excel, Microsoft Word, Text
• Power:
  • Power On Mode: ? 30 W
  • Standby Mode: < 0.5 W
  • Internal Battery: 1.3 V, 2950 mAH, up to 1.5 hours @ 300 lumens Battery life
• Noise Level:
  • Normal Mode: 32 dBA
  • Eco Mode: 24 dBA
• Regulation Approval: FCC, CE, CB, CCC, CECP, C-tick, VCCI, PSE, CU
• Color: White
• Dimensions (WxDxH): 142.5 x 130.0 x 34.6 mm
• Weight: 656.0 g

• Mfr Part Number: X8SIL-O
• CPU: Socket LGA 1156 Support Intel Xeon X3400/ L3400 series Processor
• Chipset: Intel 3400 chipset
• Memory: 4x 240pin DDR3-1333/1066/800 DIMMs, Support upto 32 GB ECC/REG DIMMs or upto 16 GB ECC/Unbuffered DIMMs
• Slots: 2x PCI-Express x8 Slot (support PCI-Express 2.0); 1x PCI-Express x4 Slot (using x8 slot); 1x 32-bit PCI Slot
• SATA: 4x SATA2 Ports
• Video: Matrox G200eW Graphic Controller, w/ 16MB DDR2 VRAM
• LAN: 2x Intel 82574L Gigabit Ethernet Controller
• Ports: 5x USB 2.0 Ports (2 by rear, 2 by headers, 1 on-board); 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 1x VGA Port; 2x RJ45 LAN Ports
• Form Factor: MATX, 9.6 x 9.6 inch/ 24.4 x 24.4 cm
• Package: Retail
• RoHS Compliant

Specifications

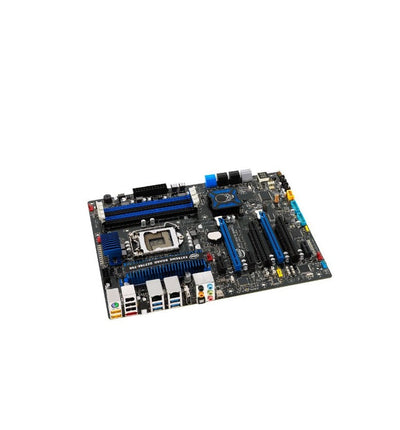

Model Number:  BLKDZ77RE75K

Brand:  Intel

Condition:  New Bulk

Alt. Part Number(s):  DZ77RE-75K

Type:  Motherboard Board Only  No Accessories

Technical Description

Brand:  Intel

Model:  BLKDZ77RE75K

Socket Type:  LGA 1155

CPU Type:  Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Chipset:  Intel Z77

Number of Memory Slots:  4×240pin

Memory Standard:  DDR3 1066 to +2400

Max Memory Supported:  32GB

Channel Supported:  Dual Channel

PCI Express 3.0 x16:  2 (x16, x8)

PCI Express x1:  3

PCI Slots:  2

SATA 3Gb/s:  4

SATA 6Gb/s:  4 x SATA 6Gb/s

Video Chipset:  Supported only by CPU with integrated graphic

Audio Chipset:  Realtek ALC898

Audio Channels:  8 Channels

LAN Chipset:  Intel 82579

Second LAN Chipset:  Intel 82574

Max LAN Speed:  Dual 10/100/1000Mbps

PS/2 Ports:  1

HDMI Ports:  1 x HDMI

USB 3.0 Ports:  4 x USB 3.0

USB 1.1/2.0 Ports:  4 x USB 2.0

IEEE 1394:  1 x IEEE 1394a

eSATA:  1 x eSATA 6Gb/s

S/PDIF Out:  1 x Optical

Audio Ports:  5 Ports

Onboard USB:  4 x USB 3.0 + 4 x USB 2.0

Onboard 1394:  1 x 1394a

Form Factor:  ATX

Dimensions (W x L):  12.0" x 9.6"

Power Pin:  24 Pin

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

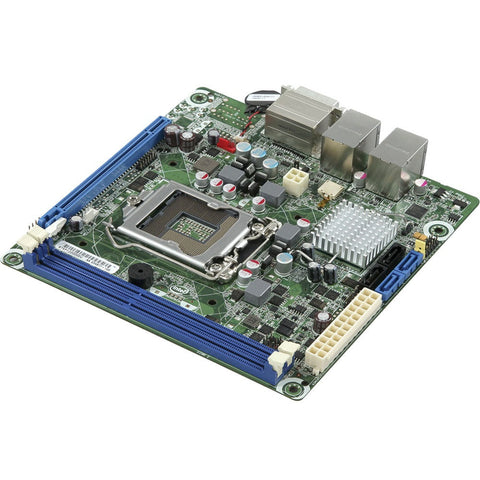

Intel DBS1200KPR C206 LGA1155 16Gb DDR3-1333MHz Mini-ITX Server Motherboard.

Specifications

Model Number:  DBS1200KPR

Brand:  Intel

Alt Part Number(s):  DBS1200KPR

Product Type:  Motherboard

Specifications

Brand:  Intel

Model:  DBS1200KPR

Socket Type:  LGA 1155

CPU Type:  Intel Xeon E3-1200 & V2, 2nd & 3rd Core i3 series, TDP up to 95W

Chipsets:  Intel C206

Number of DDR3:  Slots 2 x 240pin

DDR3 Standard:  DDR3 1066/1333

Max Memory Supported:  16GB

Channel Supported:  Dual Channel

ECC Supported:  Yes

PCI Express 2.0 x16:  1

SATA:  2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s

LAN Chipset:  2 Gigabit LAN

LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

USB 1.1/2.0:  4 x USB 2.0

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Specifications

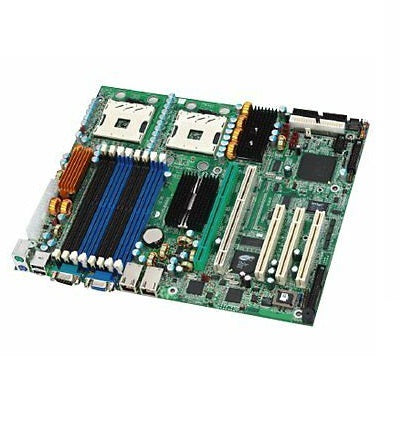

Model Number:  S5350-D-1UR-RS

Brand:  Tyan

Alt. Part Number(s):  S5350-D-1UR-RS

Type:  Motherboard

Technical Description

Brand:  Tyan

Model:  S5350-D-1UR-RS

CPU Socket Type:  Dual mPGA604

CPU Type:  Dual Intel Xeon

System Bus:  800 MHz

Chipsets:  Intel E7320, Intel 6300ESB

Number of DDR Slots:  8 x 184Pin

DDR Standard:  DDR 333 (PC 2700)

Max Memory Supported:  16GB

Channel Supported:  Dual Channel

ECC Supported:  Yes

Video Chipset:  ATI RAGE XL

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Broadcom BCM5721

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

Ports PS/2:  2

COM Ports:  1

Video Ports:   1

Onboard USB:  2 x USB 2.0

Form Factor:  SSI CEB

Width :  12.0”

Length:  10.2"
