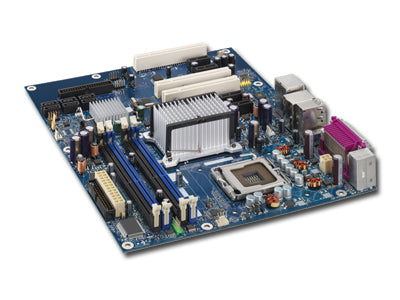

Note: Refurbished Motherboard with Backplate Only.
Technical Description
Brand: Intel
Model: DG965WHMKR
CPU Socket Type: LGA 775
CPU Type: Core 2 Duo / Pentium D / Celeron D
FSB: 1066/800MHz
Supported CPU Technologies: Hyper-Threading Technology
Chipset: Intel G965 Express, Intel ICH8R
Number of Memory Slots: 4×240pin
Memory Standard: DDR2 800
Maximum Memory Supported: 8GB
Channel Supported: Dual Channel
PCI Express x16: 1
PCI Express x1: 3
PCI Slots: 3
PATA: 1 x ATA100 2 Dev. Max
SATA 3Gb/s: 6
SATA RAID: 0/1/0+1/5 Matrix RAID
Onboard Video Chipset: Intel GMA X3000
Audio Chipset: SigmaTel STAC9271D
Audio Channels: 8 Channels
LAN Chipset: Intel 82566DC
Max LAN Speed: 10/100/1000Mbps
PS/2 Ports: 2
LPT Ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 6 x USB 2.0
IEEE 1394: 1 x IEEE 1394a
S/PDIF Out: 1 x Optical
Audio Ports: 5 Ports
Onboard USB: 4 x USB 2.0
Onboard 1394: 1 x 1394a
Form Factor: ATX
Dimensions (W x L): 11.6" x 9.6"
Windows Vista: Certified for Windows Vista
Power Pin: 24 Pin
Features
Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Expansion Slots: 2 x processor - Socket 603, 8 x memory, 2 x PCI-X / 100 MHz, 4 x PCI-X / 66 MHz, 1 x PCI-X / VXB
Storage Interfaces: ATA-100 -connectors: 2 x 40pin IDC
Internal Interfaces: 1 x floppy
Interface Type: Ultra160 SCSI
Data Link Protocol: Ethernet, Fast Ethernet, Network 2 x Ethernet
Dedicated Video Memory: 8 MB
Graphics Controller: ATI RAGE XL
Depth: 13 in
Width: 12 in
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
The Intel Desktop Board D845GVSRL delivers an integrated graphics solution with essential features designed to support the Intel Celeron processor in the mPGA478-pin package. The Intel Desktop Board D845GVSR was designed with a focus on reducing overall platform cost. Features such as the Intel 845GV chipset with Intel Extreme Graphics and support for up to 2 GB of DDR333/266/200 SDRAM memory and AC '97 audio provide the essential building blocks for the value-oriented customer to use on a low-cost platform. As you have come to expect, this product delivers the stability and reliability associated with Intel desktop boards.
Intel Rapid BIOS Boot: Reduced boot time enables fast system access.
AC '97-compliant integrated audio solution
Support for system wake up using an add-in network interface card with remote wake-up capability or PCI
Cautions:
ECC or Registered memory modules "NOT" supported
Do not use ECC DIMMs with this board. Using ECC DIMMs could damage the board.
Note:
This desktop board comes with either one of the following built-in I/O controllers, SMSC LPC47M172 or National Semiconductor PC87372 LPC bus I/O controller. Both I/O controller should be equivalent and should not cause any type of conflict if the board has one or the other.

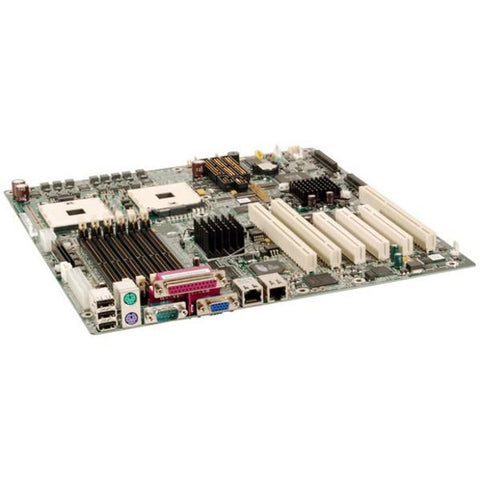

Intel SHG2 / A77226 Dual XEON Socket-603 SDRAM IDE SCSI Video LAN EXTENDED-ATX Server Motherboard
Regular price
$74.00
/
Overview
The Intel® SHG2 Server Board is designed around the Intel® Xeon™ processor and the ServerWorks* Grand Champion* LE ServerSet* chipset. This combination provides the basis for a high performance system with leading edge processor, memory, and I/O performance. The SHG2 baseboard architecture provides for two INT3-compliant (603 pin) processor sockets supporting dual processing operation using Intel Xeon processors. It also contains six industry standard PCI and PCI-X expansion slots supporting a mixture of 32-bit/33-MHz, 64-bit/100-MHz and 64-bit/133-MHz slots. The processor baseboard provides an array of embedded I/O devices including a SCSI controller that provides two independent channels at SCSI bus speeds up to 160MB/sec with 7899 SCSI controller, one embedded 10/100 Network Interface Controller (NIC), one 10/100/1000 Gigabit Network Interface Controller, and a 2D/3D graphics accelerator. Server management and monitoring hardware are also included. These features, and the others listed below, make this one of the most highly integrated server boards in this class. SHG2 supports two interleaved memory channels at 100 MHz, each utilizing the rising edge and falling edge of the clock cycle for 200MT/s per channel (also known as “double pumped”) for a combined throughput of 400 MT/s. The subsystem was originally intended for PC1600 DDR memory modules (DDR200), however up to 6 DDR200 of DDR266 registered memory modules (PC1600 or PC2100 DIMMs) inserted as pairs may be used. Each DIMM may provide up to 2 GB of memory capacity, providing up to 12 GB of system memory.
Specifications
Model Number: SHG2
Brand: Hewlett Packard
Alt Part Number(s): A77226
Product Type: Server Motherboard
Technical Description
Intel SHG2 / A77226 Dual XEON Socket-603 SDRAM IDE SCSI Video LAN EXTENDED-ATX Server Motherboard.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
