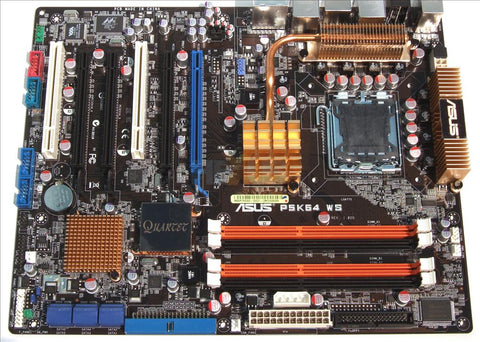

P5K64 WS Workstation Board is the ideal foundation for a powerful PC. It delivers awesome power, dependable performance and unparallel I/O scalability for the most demanding tasks and future upgrades. With the incorporation of ASUS Intelligence (AI) Technology, the P5K64 WS Workstation Board intelligently reduces operation noise and dissipates heat through advanced and environmentally friendly methods to accommodate user needs. Don't change yourself for a computer. Instead, Let the P5K64 WS Workstation Board improve the quality of your work and your life.

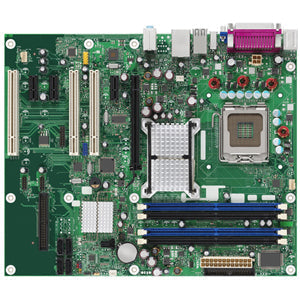

Intel DG965RYCK IG965 Express Socket-LGA775 Core 2 Duo A V L ATX Motherboard: BARE BOARD
Regular price
$59.60
/
The Intel Desktop Board DG965RY Classic Series is built in the ATX form factor, supporting a range of processors including the Intel Core 2 Duo, Intel Pentium D and the Intel Pentium 4. This board can support up to 8 GB of dual channel DDR2 800/667/533 MHz SDRAM. It also offers up to two 1394a ports, Intel High Definition Audio with support for 5.1 surround sound, Intel PRO 10/100/1000 Network connection and ample USB connectors for all your computer paraphernalia.
BLKDG965RYCK Product Overview
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: G965 Express
Total Processor Supported: 1
Processor Socket: Socket T LGA-775
Processor Supported: Core 2 Duo
Processor Supported: Pentium D
Processor Supported: Pentium 4
Processor Supported: Celeron D
Front Side Bus: 533 MHz
Front Side Bus: 800 MHz
Front Side Bus: 1066 MHz
Memory
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Standard: DDR2-533/PC2-4200
Memory Standard: DDR2-667/PC2-5300
Memory Standard: DDR2-800/PC2-6400
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type: Floppy Controller
Controller Type: Serial ATA/300
Controller Type: Ultra ATA/133 (ATA-7)
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: GMA X3000
Audio
Sound Controller Manufacturer: SigmaTel
Sound Controller Model: STAC9227
Audio Channels: 5.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Number of PCI Slots: 3
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 6
Total Number of FireWire/i.LINK Ports: 1
Number of FireWire/i.LINK 400 Ports: 1
Parallel Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Total Number of Onboard FireWire/i.LINK Ports: 1
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Physical Characteristics
Width: 11.6"
Depth: 9.6"
Additional Information:
BIOS Features:
SMBIOS
Plug and Play
Intel BIOS (resident in the SPI Flash device)
Hardware Monitor Subsystem
Four fan headers
Manageability Engine
Thermal sense to detect out of range thermal values
Three fan sense inputs used to monitor fan activity
Intel Quiet System Technology implemented through the ICH8
Support for Advanced Configuration and Power Interface (ACPI)
Prepare for the future with the Intel Desktop Board D865GLC, a platform that is truly a generation ahead. This micro-ATX board features next-generation processor and dual-channel DDR400 memory support, Intel Extreme Graphics 2, an AGP 8X slot, 8 USB 2.0 ports, integrated 6-channel audio, a Gigabit Ethernet connection, and next-generation storage device support.
BLKD865GLCLK Specifications
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: 865G
Total Processor Supported: 1
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket PGA-478
Processor Supported: Celeron
Processor Supported: Celeron D
Processor Supported: Pentium 4
Processor Supported: Pentium 4 (Extreme Edition)
Front Side Bus: 400 MHz
Front Side Bus: 533 MHz
Front Side Bus: 800 MHz
Memory
Number of Memory Slots: 4
Maximum Memory: 4 GB
Memory Standard: DDR400/PC3200
Memory Standard: DDR333/PC2700
Memory Standard: DDR266/PC2100
Memory Technology: DDR SDRAM
I/O Controller
Controller Type: Floppy Controller
Controller Type: Serial ATA/150
Controller Type: Ultra ATA/100 (ATA-6)
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: Extreme Graphics 2
Audio
Sound Controller Manufacturer: Analog Devices
Sound Controller Model: AD1985
Audio Channels: 5.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Number of PCI Slots: 3
Number of AGP Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Parallel Port: Yes
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 2
Number of SATA Interfaces: 2
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Power Description
Power Supply Supported: ATX12V
Power Supply Supported: SFX12V
Physical Characteristics
Width: 9.6"
Depth: 9.6"
Miscellaneous
Additional Information:
Intel 875P Chipset:
Intel 82865G Graphics and Memory Controller Hub (GMCH) with Accelerated Hub Architecture (AHA) bus
Intel 82801EB I/O Controller Hub (ICH5) with AHA bus
System Memory:
Minimum total system memory: 64 MB
Serial Presence Detect
Double-sided DIMMs with x16 organization are not supported
Audio Subsystem:
SoundMAX 4 XL featuring Flexible 6 Channel Audio with Jack Sensing
Advanced jack sense with Auto Topology Switching that enables the audio codec to recognize what device is connected to an audio port and alerts the user if the wrong type of device has been connected
Split digital/analog architecture for improved S/N (signal-to-noise) ratio: > 94 dB
Gigabit LAN Subsystem:
The Gigabit (10/100/1000 Mbits/sec) LAN subsystem includes the GMCH (with its CSA interface), the Intel 82547EI PLC, and an RJ-45 LAN connector with integrated status LEDs
Communication Streaming Architecture (CSA) port provides higher throughput and lower latencies than the Intel 82562EZ device, resulting in up to 30% higher bus throughput (up to wirespeed)
Full device driver compatibility
Programmable transit threshold
Configuration EEPROM that contains the MAC address
Intel Extreme Graphics 2 Controller:
32 bpp (Bits Per Pixel) graphics engine
266 MHz core frequency
256-bit 2-D engine
32-bit 3-D engine
Motion video acceleration
High performance 3-D setup and render engine
High quality/performance texture engine
Integrated 24-bit 350 MHz RAMDAC
DDC2B compliant interface
Dual monitor synchronous display with ADD card
Hardware motion compensation for software MPEG2 decode
Two multiplexed DVO port interfaces with 165 MHz pixel clocks using an AGP Digital Display (ADD) card
Dynamic Video Memory Technology (DVMT) support up to 64 MB
Intel Rapid BIOS Boot:
Optimized POST for faster access to PC from power-on
Certifications & Standards:
Safety Regulations:
UL 60950 3rd ed.,2000/CSA C22.2 No. 60950-00 (USA and Canada)
EN 60950:2000 (European Union)
IEC 60950, 3rd Edition, 1999 (International)
EMC regulations: (tested in representative chassis)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

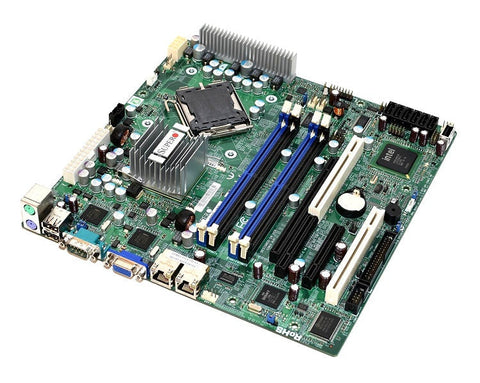

Supermicro X7SBL-LN2 Xeon 3000 LGA-775 8Gb DDR2 Micro-ATX Server Motherboard
Regular price
$59.60
/
Specifications
Model Number: X7SBL-LN2
Brand: Supermicro
Alt Part Number(s): X7SBL-LN2
Product Type: Server Motherboard
Technical Description
Brand: Supermicro
Model: X7SBL-LN2
CPU Socket Type: LGA 775
CPU Type: Intel Xeon 3000 Sequence and Core 2 Quad / Duo Series*
System Bus: 1333/1066/800 MHz
Chipsets: Intel 3200, Intel ICH9R
Number of DDR2 Slots: 4 x 240Pin
DDR2 Standard: DDR2 800/667
Maximum Memory Supported: 8GB
Channel Supported: Dual Channel
ECC Supported: Yes
PCI Express x8: 1 x PCI Express x8
PCI Express x4: 1 (x4) PCI-E (using x8) slot
PCI Slots: 2 x PCI Slots
SATA: 6 x SATA 3.0Gb/s
SATA RAID: RAID 0, 1, 5, 10 support (Windows Only) / RAID 0, 1, 10 support (Linux)
Onboard Video Chipset: XGI Volari Z9S 32MB
LAN Chipset: Intel 82573V
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Intel 82573L
Second LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2 Ports: 2
COM Ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 2 x USB 2.0
Onboard USB: 2 headers ( 4 ports ) + 1 on-board
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

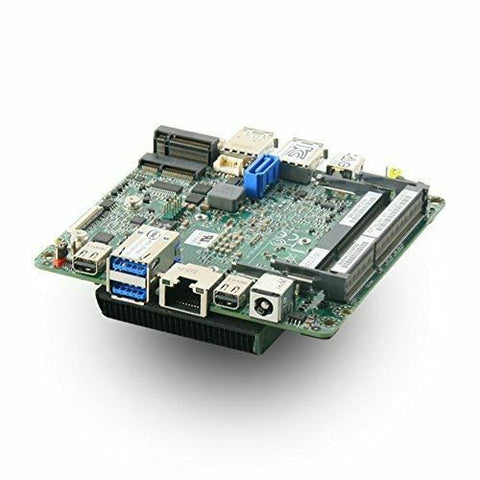

PCI Express Configurations: M.2 slot with PCIe X2 lanes + HS Custom Solutions Header with PCIe x4 lanes
USB Revision: USB 3.0, USB 2.0
USB Ports: 6
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 4 + 0
Total SATA Ports: 1
Total SATA 6.0 Gb/s Ports: 1
RAID Configuration: 2.5" SSD + M.2 SATA SSD (RAID-0 RAID-1)
Serial Port via Internal Header: Yes
Audio (back channel + front channel): Front panel headset jack
Integrated LAN: 10/100/1000Mbps
Note: NUC Motherboard Only (Accessories Not Included)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

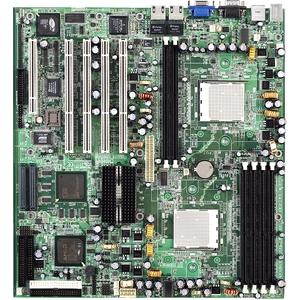

Tyan S2880UGNR AMD 8131 Socket-Dual 940 Dual AMD Opteron DDR V L Motherboard
Regular price
$59.60
/
Thunder K8S (S2880) S2880UGNR Server Board offers the best solution for rackmount and pedestal servers. The Thunder K8S (S2880) features a high bandwidth integrated memory controller for superior productivity through HyperTransport chipset technology to increase overall performance by removing or reducing I/O bottlenecks.
