Tyan Tomcat K8E S2865G2NR-RS NVidia NForCE4 Core-Logic Socket-939 Video LAN ATX Server Motherboard
Regular price
$58.00
/
What has the power of AMD64 core technology, the performance of the NVIDIA nForce 4 chipset, and features for the server and desktop space? The Tomcat K8E (S2865) offers customers the flexibility to meet numerous application requirements. Features of the Tomcat K8E include support for the AMD Opteron 100 series (939-pin socket) processor, support for up to 4GB of DDR400/333 unbuffered memory, PCI Express x16 and dual x1 slots, integrated dual Gigabit Ethernet LAN, built-in multi-channel audio, SATA-II NVRAID , and much more. In addition, Tomcat K8E-based systems will deliver higher performance-per-watt and better acoustic levels thanks to PowerNow! technology (with the AMD Opteron). With all of this, plus scalability for 32-bit and 64-bit applications, the Tomcat K8E presents a compelling solution for any number of customer requirements.
S2865G2NR-RS Product Overview
Processor & Chipset
Chipset Manufacturer: NVIDIA
Total Processor Supported: 1
Processor Technology: HyperTransport Technology
Processor Socket: Socket PGA-939
Processor Supported: Opteron
Memory
Number of Memory Slots: 4
Maximum Memory: 4 GB
Memory Standard: DDR400/PC3200
Memory Standard: DDR333/PC2700
Memory Technology: DDR SDRAM
I/O Controller
Controller Type: Ultra ATA/133 (ATA-7)
Controller Type: Serial ATA/300
Controller Type: Floppy Controller
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8 MB
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Number of PCI Slots: 4
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Parallel Port: Yes
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Physical Characteristics
Width: 12.0"
Depth: 9.6"
Miscellaneous
Package Contents:
1x Tomcat K8E (S2865) Server Board
1x 34-Pin floppy drive cable
4 x SATA cable
2 x SATA Drive Power Adapter
2 x Ultra-DMA-100/66 IDE cable
1 x USB2.0 cable
1 x Tomcat K8E user's manual
1 x TYAN driver CD
1 x I/O shield
1 x NV RAID driver diskette (Depending on CD version)

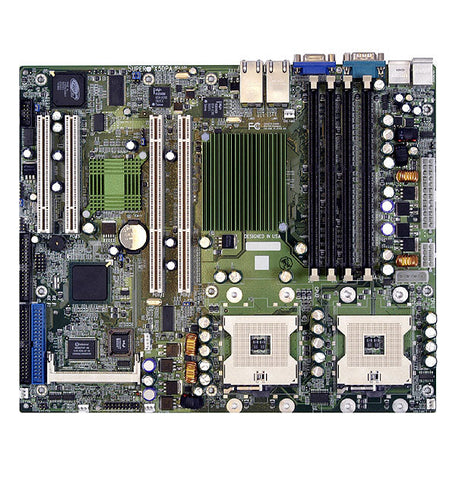

Supermicro X5DPA-GG E7501 Dual XEON Socket-604 533FSB Video 2GB-LAN ATX Motherboard : OEM BARE
Regular price
$58.00
/
The SUPER X5DPA-GG supports dual Intel Xeon processors at up to 3.06 GHz at a 533/400 MHz front side bus. This motherboard is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Key Features
Product Type
Motherboard
Form Factor
ATX
Width
30.5 cm
Depth
25.4 cm
CPU Type
Xeon
CPU Socket Type
Socket 604
Chipset Type
Intel E7501
Data Bus Speed
533 MHz
BIOS Type
AMI
Storage Controllers
ATA-100
Processor
Installed Qty (Max Supported)
2
Memory
Supported RAM Technology
DDR SDRAM
Supported RAM Integrity Check
ECC
Video
Graphics Controller
ATI RAGE XL
Audio
Audio Output Type
None
Features
BIOS Features
ACPI 1.0 support, SMBIOS 2.3 support
Sleep / Wake Up Features
wake on LAN (WOL), wake on ring (WOR)
Hardware Features
Chassis intrusion detection, Watch Dog Timer
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, chassis temperature, power supply fan tachometer, system voltage
Expansion / Connectivity
Storage Interfaces
ATA-100 - connector(s): 2 x 40pin IDC
Interfaces
1 x display / video - VGA - 15 pin HD D-Sub (HD-15), 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style), 1 x mouse - generic - 6 pin mini-DIN (PS/2 style), 1 x storage - floppy interface - 34 pin IDC, 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45, 2 x serial - RS-232 - 9 pin D-Sub (DB-9), 3 x USB - 4 pin USB Type A
Miscellaneous
Cables Included
1 x floppy cable ¦ 1 x IDE cable ¦ 1 x serial cable ¦ 1 x USB cable

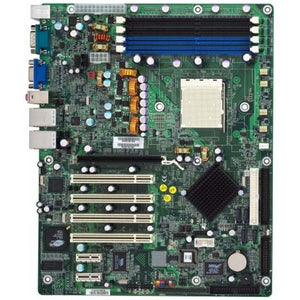

TYAN S2865G2NR Nvidia Nforce4 Core-Logic Socket-939 AMD Opteron DDR 400MHZ V L Motherboard
Regular price
$58.00
/
What has the power of AMD64 core technology, the performance of the NVIDIA nForce 4 chipset, and features for the server and desktop space? The Tomcat K8E (S2865) Desktop Board offers customers the flexibility to meet numerous application requirements. Features of the Tomcat K8E include support for the AMD Opteron 100 series (939-pin socket) processor, support for up to 4GB of DDR400/333 unbuffered memory, PCI Express x16 and dual x1 slots, integrated dual Gigabit Ethernet LAN, built-in multi-channel audio, SATA-II NVRAID and much more. In addition, Tomcat K8E-based systems will deliver higher performance-per-watt and better acoustic levels thanks to PowerNow! technology (with the AMD Opteron. With all of this, plus scalability for 32-bit and 64-bit applications, the Tomcat K8E presents a compelling solution for any number of customer requirements.
S2865G2NR Product Overview
Processor & Chipset
Chipset Manufacturer: NVIDIA
Total Processor Supported: 1
Processor Technology: HyperTransport Technology
Processor Socket: Socket PGA-939
Processor Supported: Opteron
Processor Supported: Athlon 64
Processor Supported: Athlon 64 FX
Processor Supported: Athlon 64 X2
Memory
Number of Memory Slots: 4
Maximum Memory: 4 GB
Memory Standard: DDR333/PC2700
Memory Standard: DDR400/PC3200
Memory Technology: DDR SDRAM
I/O Controller
Controller Type: Floppy Controller
Controller Type: Serial ATA/300
Controller Type: Ultra ATA/133 (ATA-7)
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8 MB
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Number of PCI Slots: 4
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Parallel Port: Yes
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Onboard Interfaces
Number of IDE Interfaces: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Physical Characteristics
Width: 12.0"
Depth: 9.6"
Miscellaneous
Package Contents:
Tomcat K8E (S2865) Desktop Board
1x 34-Pin floppy drive cable
4 x SATA cable
2 x SATA Drive Power Adapter
2 x Ultra-DMA-100/66 IDE cable
1 x USB2.0 cable
1 x Tomcat K8E user manual
1 x Tomcat K8E Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
1 x NV RAID driver diskette
SMDC (IPMI)
Additional Information:
Chipsets:
nVIDIA nForce4 core-logic
SMSC DME1737
System Management:
SMSC DME1737 w/ hardware monitoring
One 4-pin CPU fan with auto fan control
Four 4-pin system fan headers (three with tachometer input and four with auto fan control)
